General Description
HDSP-510x Series General Description
The large 5 X 7 dot matrix alpha- numeric display family consists of 26.5 mm (1.04 inch) and 17.3 mm (0.68 inch) character height packages. These devices have excellent viewability; the 26.5 mm character can be read at up to 18 meters (12 meters for the
0.68 inch part).
The 26.5 mm font has a 10.2mm (0.4 inch) dual-in-line (DIP) con-figuration, while the 17.3mm font has an industry standard 7.6 mm (0.3 inch) DIP configuration.
HDSP-510x Series Maximum Ratings
| Description | HDSP-M10X Series | HDSP-450X Series | HDSP-510X Series |
| Average Power per Dot(TA= 25°C)[1] | 75 mW | ||
| Peak Forward Current per Dot(TA= 25°C)[1,2] | 125 mA | 90 mA | 90 mA |
| Average Forward Current per Dot(TA= 25°C)[1,3] | 23 mA | 15 mA | 15 mA |
| Operating Temperature Range | 20°C to +85°C | 40°C to+85°C | 20°C to +85°C |
| Storage Temperature Range | 40°C to +85°C | ||
| Wave Soldering Temperature (1.59 mm [0.062 in.] below Body) |
250°C for 3 s | ||
HDSP-510x Series Features
• Multiple Colors Available
• Large Character Height
• 5 X 7 Dot Matrix Font
• Viewable Up to 18 Meters(26.5 mm Display)
• X-Y Stackable
• Ideal for Graphics Panels
• Available in Common Row Anode and Common Row Cathode Configurations
• AlGaAs Displays Suitable forLow Power or BrightAmbients
• Categorized for Intensity
• Mechanically Rugged
• Green Categorized for Color
HDSP-510x Series Typical Application
Applications include electronic instrumentation, computer peripherals, point of sale termi-nals, weighing scales, and indus-trial electronics.
HDSP-076
PDF/DataSheet Download
- Datasheet: HDSP-076
- File Size: 121610 KB
- Manufacturer: HP [Agilent(Hewlett-Packard)]
- Click here to Download
- ·HDSP-0760
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0761
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0762
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0763
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0770
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0771
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0772
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
- ·HDSP-0773
- HP [Agilent(Hewlett-Packard)]
- Hexadecimal and Numeric Displays for Industrial Applications
- 121610 KB
HDSP-510x Series Relative Products
HDSP-510x
The large HDSP-510x5 X 7 dot matrix alphanumeric display family consists of 26.5 mm (1.04 inch) and 17.3 mm (0.68 inch) character height packages. These devices have excellent viewability; the 26.5 mm character can be read at up to 18 meters (12 meters for t...
HDSP-503B
These HDSP-503B 14.2 mm ( 0.56 inch) blue displays use industry standard size and pin-out. The HDSP-503B are available as either common anode or common cathode. The HDSP-50xB series are suitable for indoor use.
HDSP-501B
These HDSP-501B 14.2 mm ( 0.56 inch) blue displays use industry standard size and pin-out. The devices are available as either common anode or common cathode. The HDSP-501B series are suitable for indoor use.
HDSP-4850

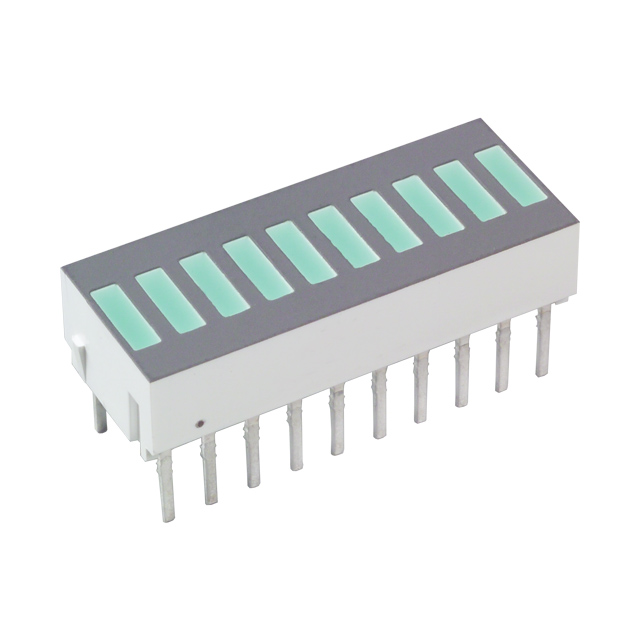

LED BAR GRAPH 10SEG GREEN
