Part Number: HEF40244B
Description: The HEF40244B is an octal non-inverting buffer with 3-state outputs. It features output stages with high current output...
- Table of contents:
HEF40244B
-
Suppliers
DataSheet
General Description
HEF40244B General Description
The HEF40244B is an octal non-inverting buffer with 3-state outputs. It features output stages with high current output capability suitable for driving highly capacitive loads.
The 3-state outputs are controlled by the output enable inputs EOA and EOB. A HIGH on EO causes the outputs to assume a high impedance OFF-state. The device also features hysteresis on all inputs to improve noise immunity.
Schmitt-trigger action in the inputs makes the circuit highly tolerant to slower input rise and fall times.
The HEF40244B is pin and functionally compatible with the TTL '244' device.

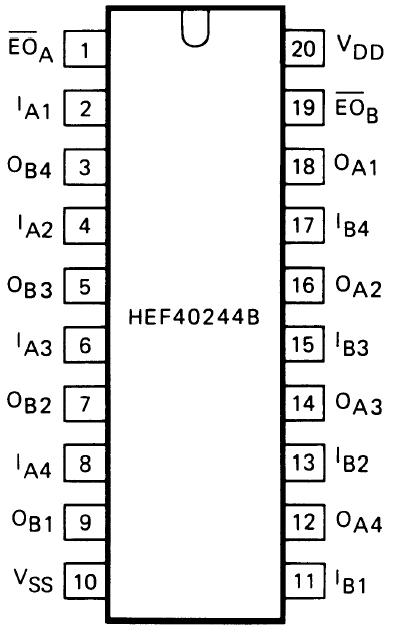

HEF40244B Connection Diagram
