HEF4043B

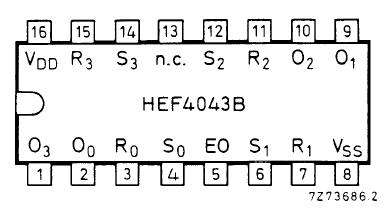

The HEF4043B is a quadruple R/S latch with 3-state outputs with a common output enable input (EO). Each latch has an active HIGH set input (S₀ to S₃), an active HIGH reset input (R₀ to R₃) and an active HIGH 3 state output (O₀ to O₃).

When EO is HIGH, the state of the latch output (On) can be determined from the function table below. When EO is LOW, the HEF4043B latch outputs are in the high impedance OFF-state. EO does not affect the state of the latch.

The high impedance off-state feature allows common busing of the outputs.
