Part Number: HEF4049B



MFG: PHILIPS

Package Cooled: SOP



Description: The HEF4049B provides six inverting buffers with high current output capability suitable for driving TTL or high capaci...


Urgent Purchase

HEF4049B General Description


The HEF4049B provides six inverting buffers with high current output capability suitable for driving TTL or high capacitive loads. Since input voltages in excess of the buffers' supply voltage are permitted, the buffers may also be used to convert logic levels of up to 15 V to standard TTL levels. Their guaranteed fan-out into common bipolar logic elements is shown in the table below.

HEF4049B Typical Application

Some examples of applications for the HEF4049B are:
· LOCMOS to DTL/TTL converter
· HIGH sink current for driving 2 TTL loads
· HIGH-to-LOW level logic conversion

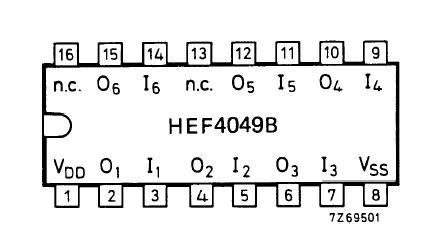

HEF4049B Connection Diagram

HEF4049B Connection Diagram

HEF4049B datasheet

HEF4049B
PDF/DataSheet Download
