HEF4053B

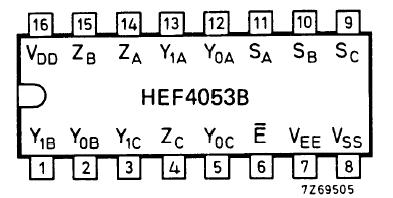

The HEF4053B is a triple 2-channel analogue multiplexer/demultiplexer with a common enable input (E). Each HEF4053B multiplexer/demultiplexer has two independent inputs/outputs (Y0 and Y1), a common input/output (Z), and select inputs (Sn). Each HEF4053B contains two-bidirectional analogue switches, each with one side connected to an independent input/output (Y0 and Y1) and the other side connected to a common input/output (Z).

With E LOW, one of the two switches is selected (low impedance ON-state) by Sn. With E HIGH, all switches are in the high impedance OFF-state, independent of SA to SC. VDD and VSS are the supply voltage connections for the digital control inputs (SA to SC and E).The VDD to VSS range is 3 to 15 V. The analogue inputs/outputs (Y0, Y1 and Z) can swing between V_DD as a positive limit and V_EE as a negative limit. V_DD-V_EE may not exceed 15 V.For operation as a digital multiplexer/demultiplexer, V_{EE of HEF4053B} is connected to VSS (typically ground).
