HFA105NH60R

DIODE HEXFRED 600V 105A HALF-PAK

product image

HFA105NH60R Picture
SeekIC No. : 004129625 Detail

HFA105NH60R: DIODE HEXFRED 600V 105A HALF-PAK

floor Price/Ceiling Price

Part Number:
HFA105NH60R
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: HEXFRED® Manufacturer: Vishay Semiconductors
Voltage - Forward (Vf) (Max) @ If: 1.5V @ 105A Current - Reverse Leakage @ Vr: 30µA @ 600V
Maximum Clock Frequency : 33 MHz Current - Average Rectified (Io) (per Diode): 105A
Voltage - DC Reverse (Vr) (Max): 600V Reverse Recovery Time (trr): 140ns
Diode Type: Standard Speed: Fast Recovery = 200mA (Io)
Diode Configuration: Single Mounting Type: Chassis Mount
Package / Case: D-67 HALF-PAK Supplier Device Package: HALF-PAK

Description

Manufacturer: Vishay Semiconductors
Diode Type: Standard
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Voltage - DC Reverse (Vr) (Max): 600V
Packaging: Bulk
Diode Configuration: Single
Series: HEXFRED®
Package / Case: D-67 HALF-PAK
Supplier Device Package: HALF-PAK
Reverse Recovery Time (trr): 140ns
Voltage - Forward (Vf) (Max) @ If: 1.5V @ 105A
Current - Reverse Leakage @ Vr: 30µA @ 600V
Current - Average Rectified (Io) (per Diode): 105A


Features:

• Reduced RFI and EMI
• Reduced Snubbing
• Extensive Characterization of Recovery Parameters



Pinout

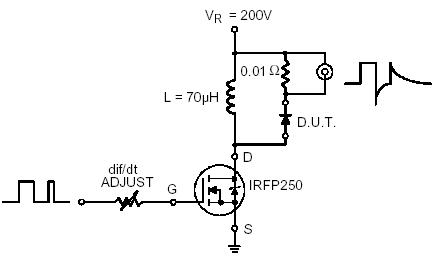

  Connection Diagram


Specifications

  Parameters Max Units
VR Cathode-to-Anode Voltage 600 V
IF @ TC = 25°C Continuous Forward Current 147 A
IF @ TC = 100°C Continuous Forward Current 72 A
IFSM Single Pulse Forward Current 600 A
IAS Maximum Single Pulse Avalanche Current 2.0
EAS Non-Repetitive Avalanche Energy 220 mj
PD @ TC = 25°C Maximum Power Dissipation 379 W
PD @ TC = 100°C Maximum Power Dissipation 152 W
TJ, TSTG Operating Junction and Storage Temperatures - 55 to 150 °C



Description

HFA105NH60R diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. These HFA105NH60R devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.
