Purchase HFA1109IB, In-stock HFA1109IB From SeekIC.
D/C:01+
Part Number: HFA1109IB
D/C: 01+
Description: The HFA1109 is a high speed, low power, current feedback amplifier built with Intersil's proprietary c...
- Table of contents:
HFA1109IB
-
Suppliers
DataSheet
General Description
HFA1109IB General Description
The HFA1109 is a high speed, low power, current feedback amplifier built with Intersil's proprietary complementary bipolar UHF-1 process. This amplifier features a unique combination of power and performance specifically tailored for video applications.
The HFA1109 is a standard pinout op amp. It is a higher performance, drop-in replacement (no feedback resistor change required) for the CLC409.
If a comparably performing op amp with an output disable function (useful for video multiplexing) is required, please refer to the HFA1149 data sheet..
HFA1109IB Maximum Ratings
Voltage Between V+ and V- . . . . . . . . . . . . . . . . . . . . . . . . . .12V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . VSUPPLY
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . . .8V
Output Current (Note 4) . . . . . . . . . . . . . .Short Circuit Protected
30mA Continuous
60mA 50% Duty Cycle
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . ..1400V
Charged Device Model (Per EOS/ESD DS5.3, 4/14/93) . . . .2000V
Machine Model (Per EIAJ ED-4701Method C-111) . . . . . . . .. .50V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . VSUPPLY
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . .. . . .8V
Output Current (Note 4) . . . . . . . . . . . . . .Short Circuit Protected
30mA Continuous
60mA 50% Duty Cycle
ESD Rating
Human Body Model (Per MIL-STD-883 Method 3015.7) . . ..1400V
Charged Device Model (Per EOS/ESD DS5.3, 4/14/93) . . . .2000V
Machine Model (Per EIAJ ED-4701Method C-111) . . . . . . . .. .50V
HFA1109IB Features
• Wide - 3dB Bandwidth (AV = +2) . . . . . . . . . . . . . 450MHz
• Gain Flatness (To 250MHz) . . . . . . . . . . . . . . . . . . . 0.8dB
• Very Fast Slew Rate (AV = +2). . . . . . . . . . . . . . 1100V/s
• High Input Impedance . . . . . . . . . . . . . . . . . . . . . . 1.7M
• Differential Gain/Phase . . . . . . . . . . . . . . . . . 0.02%/0.02°
• Low Supply Current . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
• Pb-Free Plus Anneal Available (RoHS Compliant)
• Gain Flatness (To 250MHz) . . . . . . . . . . . . . . . . . . . 0.8dB
• Very Fast Slew Rate (AV = +2). . . . . . . . . . . . . . 1100V/s
• High Input Impedance . . . . . . . . . . . . . . . . . . . . . . 1.7M
• Differential Gain/Phase . . . . . . . . . . . . . . . . . 0.02%/0.02°
• Low Supply Current . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
• Pb-Free Plus Anneal Available (RoHS Compliant)
HFA1109IB Typical Application
• Professional Video Processing
• Video Switchers and Routers
• Medical Imaging
• PC Multimedia Systems
• Video Distribution Amplifiers
• Flash Converter Drivers
• Radar/IF Processing
• Video Switchers and Routers
• Medical Imaging
• PC Multimedia Systems
• Video Distribution Amplifiers
• Flash Converter Drivers
• Radar/IF Processing
HFA1109IB Connection Diagram
HFA1109IB
PDF/DataSheet Download
- Datasheet: HFA1109IB
- File Size: 110540 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
- ·HFA-0001
- INTERSIL [Intersil Corporation]
- Ultra High Slew RateOperational Amplifier
- 682937 KB
- ·HFA-0002
- INTERSIL [Intersil Corporation]
- Low Noise Wideband Operational Amplifier
- 628238 KB
- ·HFA-0003
- INTERSIL [Intersil Corporation]
- Ultra High Speed Comparator
- 153409 KB
- ·HFA-0003L
- INTERSIL [Intersil Corporation]
- Ultra High Speed Comparator
- 153409 KB
- ·HFA-0005
- INTERSIL [Intersil Corporation]
- High Slew Rate Operational Amplifier
- 777925 KB
- ·HFA04SD60S
- IRF [International Rectifier]
- Ultrafast, Soft Recovery Diode
- 166534 KB
- ·HFA04TB60
- IRF [International Rectifier]
- Ultrafast, Soft Recovery Diode
- 176216 KB
- ·HFA04TB60S
- IRF [International Rectifier]
- Ultrafast, Soft Recovery Diode
- 186326 KB
HFA1109IB Relative Products
HFA1109
The HFA1109 is a high speed, low power, current feedback amplifier built with Intersil's proprietary complementary bipolar UHF-1 process. This amplifier features a unique combination of power and performance specifically tailored for video applications.The H...
HFA1106
The HFA1106 is a high speed, low power current feedback operational amplifier built with Intersil's proprietary comple- mentary bipolar UHF-1 process. This HFA1106 amplifier features a compensation pin connected to the internal high impedance node, which all...
HFA1105IBZ96
IC OPAMP CFA 330MHZ LP 8-SOIC
-

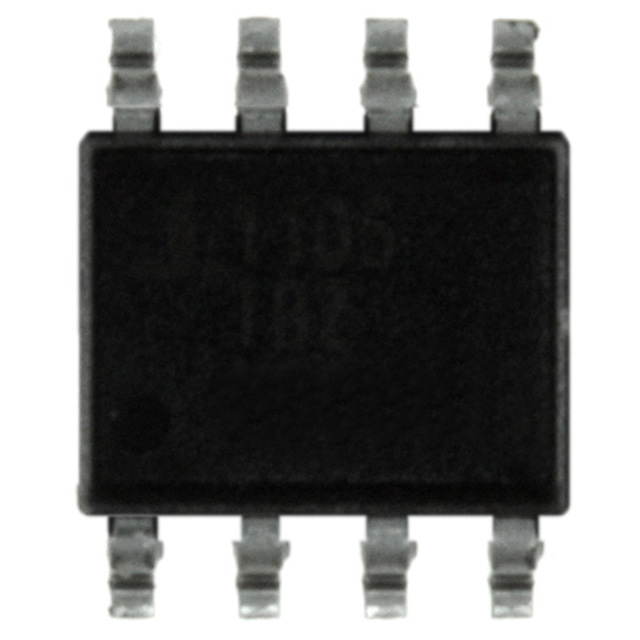

HFA1105IBZ
