HFA160NJ40C

Manufacturer: Vishay Semiconductors
Current - Average Rectified (Io) (per Diode): 170A (DC)
Voltage - DC Reverse (Vr) (Max): 400V
Diode Type: Standard
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Diode Configuration: 1 Pair Common Cathode
Packaging: Bulk
Series: HEXFRED®
Reverse Recovery Time (trr): 140ns
Current - Reverse Leakage @ Vr: 6µA @ 400V
Package / Case: TO-244AB Isolated Tab
Supplier Device Package: TO-244AB (Isolated)
Voltage - Forward (Vf) (Max) @ If: 1.3V @ 80A


Features:

·Reduced RFI and EMI
·Reduced Snubbing
·Extensive Characterization of
·Recovery Parameters


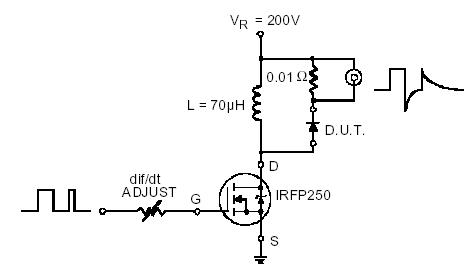

Pinout




Specifications

	Parameters	Max	Units
VR	Cathode-to-Anode Voltage	400	V
IF @ TC = 25°C	Continuous Forward Current	170	A
IF @ TC = 100°C	Continuous Forward Current	84	A
IFSM	Single Pulse Forward Current	600	A
EAS	Non-Repetitive Avalanche Energy	1.4	mJ
PD @ TC = 25°C	Maximum Power Dissipation	310	W
PD @ TC = 100°C	Maximum Power Dissipation	125	W
TJ, TSTG	Operating Junction and Storage Temperatures	- 55 to 150	°C

Description

HFA160NJ40C HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. These HFA160NJ40C devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.
