HFA16PA60C

Product : Ultra Fast Recovery Rectifiers
Reverse Voltage : 600 V
Forward Continuous Current : 8 A
Reverse Current IR : 5 uA
Mounting Style : Through Hole
Packaging : Tube
Package / Case : TO-247AC
Max Surge Current : 60 A
Configuration : Dual Common Cathode
Recovery Time : 55 ns
Forward Voltage Drop : 2.1 V at 16 A


Pinout






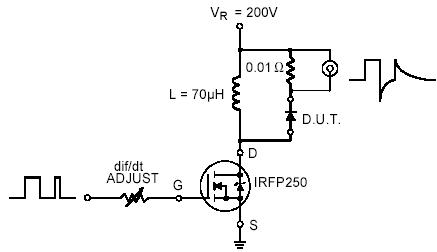

Specifications

	Parameter	Max	Units
VR	Cathode-to-Anode Voltage	600	V
IF @ TC = 100°C	Continuous Forward Current (per Leg)	8	A
IFSM	Single Pulse Forward Current	60
IFRM	Maximum Repetitive Forward Current	24
PD @ TC = 25°C	Maximum Power Dissipation	36	V
PD @ TC = 100°C	Maximum Power Dissipation	14
TJ	Operating Junction and	-55 to +150	°C
TSTG	Storage Temperature Range

Description

HEXFRED? Ultrafast, Soft Recovery Diode, 2 x 8 A. International Rectifier's HFA16PA60C is a state of the art center tap ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques HFA16PA60C features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available.

With basic ratings of 600 volts and 8 amps per Leg continuous current, the HFA16PA60C is especially well suited for use as the companion diode for IGBTs and MOSFETs. In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery.

The HEXFRED features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor. These HEXFRED advantages can help to significantly reduce snubbing, component count and heatsink sizes. The HEXFRED HFA16PA60C is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.
