Part Number: HFA32PA120C



MFG: IR



D/C: TO3P

Description: International Rectifier's HFA32PA120C is a state of the art ultra fast recovery diode. Employing the latest in epitaxia...


Urgent Purchase

HFA32PA120C General Description


International Rectifier's HFA32PA120C is a state of the art ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 1200 volts and 16 amps continuous current, the HFA32PA120C is especially well suited for use as the companion diode for IGBTs and MOSFETs. In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery. The HEXFRED features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor.

These HEXFRED advantages can help to significantly reduce snubbing, component count and heatsink sizes. The HEXFRED HFA32PA120C is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.

HFA32PA120C Maximum Ratings

  Parameter Max Units
VR Cathode-to-Anode Voltage 1200 V
IF @ TC = 100°C Continuous Forward Current 16 A
IFSM Single Pulse Forward Current 190
IFRM Maximum Repetitive Forward Current 64
PD @ TC = 25°C Maximum Power Dissipation 151 °C
PD @ TC = 100°C Maximum Power Dissipation 60
TJ Operating Junction and -55 to +150 W
TSTG Storage Temperature Range

HFA32PA120C Features

• Ultrafast Recovery
• Ultrasoft Recovery
• Very Low IRRM
• Very Low Qrr
• Specified at Operating Conditions

HFA32PA120C Typical Application

• Reduced RFI and EMI
• Reduced Power Loss in Diode and Switching Transistor
• Higher Frequency Operation
• Reduced Snubbing
• Reduced Parts Count

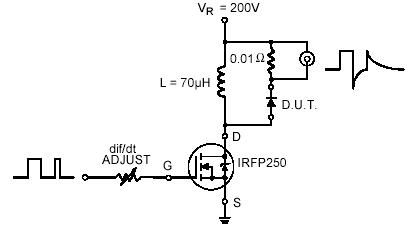

HFA32PA120C Connection Diagram

HFA32PA120C Connection Diagram

HFA32PA120C datasheet

HFA32PA120C
PDF/DataSheet Download

Find HFA32PA120C Suppliers
