Part Number: HFB20HJ20C



MFG: HARRIS/FAIRCHILD

Package Cooled: TO



Description: HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An...


Urgent Purchase

HFB20HJ20C General Description


HEXFREDTM diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions.

The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.

HFB20HJ20C Maximum Ratings

  Parameter Max Units
VR Cathode to Anode Voltage ( Per Leg ) 200 V
IF(AV) Continuous Forward Current, TC = 85°C 20 A
IFSM Single Pulse Forward Current, TC = 25°C ( Per Leg) 125
PD @ TC = 25°C Maximum Power Dissipation 28 V
TJ,TSTG Operating Junction and Storage Temperature Range -55 to +150 °C

HFB20HJ20C Features

• Reduced RFI and EMI
• Reduced Snubbing
• Extensive Characterization of Recovery Parameters
• Hermetic
• Surface Mount

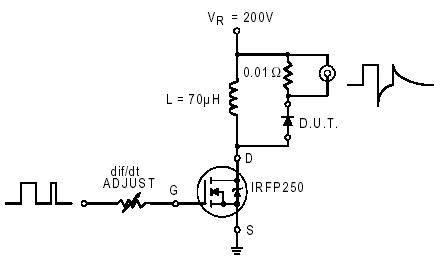

HFB20HJ20C Connection Diagram

HFB20HJ20C Connection Diagram

HFB20HJ20C datasheet

HFB20HJ20C
PDF/DataSheet Download
