Part Number: HFBR-53A5VFM



MFG: AGILENT



D/C: 04+

Description: The HFBR-53A5VM transceivers from Agilent Technologies allow the system designer to implement a range of solutions for ...


Urgent Purchase

HFBR-53A5VFM General Description


The HFBR-53A5VM transceivers from Agilent Technologies allow the system designer to implement a range of solutions for multimode Gigabit Ethernet applications.

The overall Agilent transceiver product consists of three sections: the transmitter and receiver optical subassemblies, an electrical subassembly, and the package housing which incorporates a duplex SC connector receptacle.

HFBR-53A5VFM Maximum Ratings

Parameter Symbol Min Max Unit Reference
Storage Temperature TS -40 +100 °C
Supply Voltage VCC -0.5 5.0 V 1
Transmitter Differential Input Voltage VD   2.2 V
Relative Humidity RH 5 95 %
TTL Signal Detect Current Low IOL, MAX 5   mA
TTL Signal Detect Current High IOH,MAX   4.0 mA

HFBR-53A5VFM Features

• Compliant with specifications for IEEE- 802.3z Gigabit Ethernet
• Industry standard mezzanine height 1 x 9 package style with integral duplex SC connector
• Performance HFBR-53A5VEM/FM:
220 m links in 62.5/125 mm MMF
160 MHz* km cables
275 m links in 62.5/125 mm MMF
200 MHz* km cables
500 m links in 50/125 mm MMF
400 MHz* km cables
550 m links in 50/125 mm MMF
500 MHz* km cables
• IEC 60825-1 Class 1/CDRH Class I laser eye safe
• Single +3.3 V power supply operation with PECL compatible logic interfaces and TTL Signal Detect
• Wave solder and aqueous wash process compatible

HFBR-53A5VFM Typical Application

• Switch to switch interface
• Switched backbone applications
• High speed interface for file servers
• High performance desktops

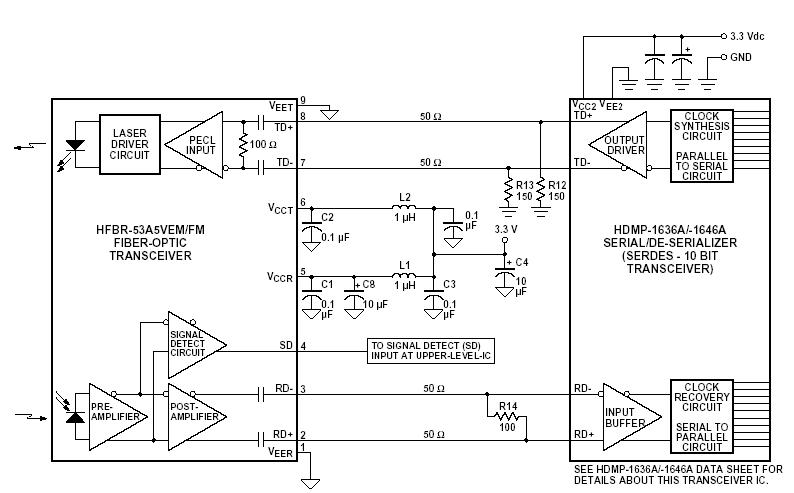

HFBR-53A5VFM Connection Diagram

HFBR-53A5VFM Connection Diagram
