HFBR-5903

Features:

• Multisourced 2 x 5 package style with MT-RJ receptacle
• Single +3.3 V power supply
• Wave solder and aqueous wash process compatible
• Manufactured in an ISO 9002 certified facility
• Full compliance with the optical performance requirements of the FDDI PMD standard
• Full compliance with the FDDI LCF-PMD standard
• Full compliance with the optical performance requirements of the ATM 100 Mb/s physical layer
• Full compliance with the optical performance requirements of 100 Base-FX version of IEEE 802.3u


Application

• Multimode fiber backbone links
• Multimode fiber wiring closet to desktop links

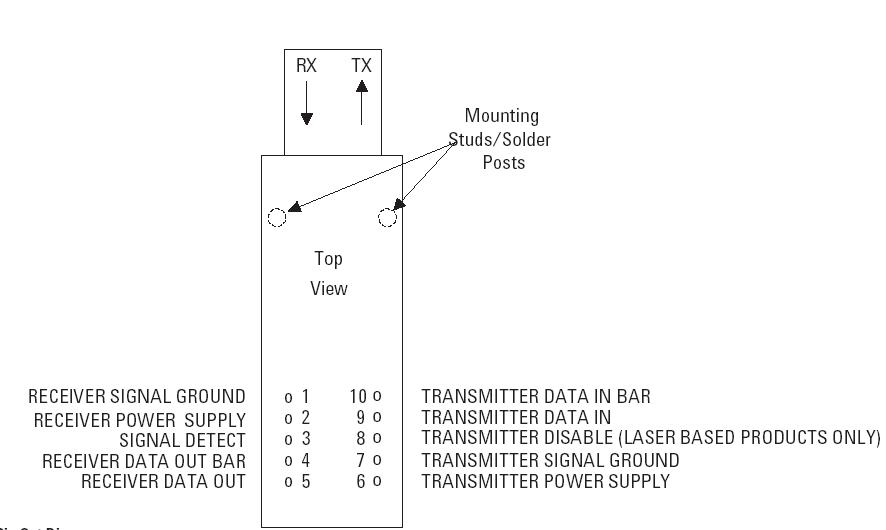

Pinout




Specifications

Parameter	Symbol	Minimum	Typical	Maximum	Unit	Reference
Storage Temperature	TS	-40		+100	°C
Lead Soldering Temperature	TSOLD			+260	°C
Lead Soldering Time	tSOLD			10	sec.
Supply Voltage	VCC	-0.5		3.6	V
Data Input Voltage	VI	-0.5		VCC	V
Differential Input Voltage	VD			2.0	V	Note 1
Output Current	IO			50	mA

Description

The HFBR-5900 family of transceivers from Agilent provide the system designer with products to implement a range of FDDI and ATM (Asynchronous Transfer Mode) designs at the 100 Mb/s-125 MBd rate. The transceivers are all supplied in the new industry standard 2 x 5 DIP style with a MT-RJ fiber connector interface. The HFBR-5903 is a 1300 nm product with optical performance compliant with the FDDI PMD standard. The FDDI PMD standard is ISO/IEC 9314-3: 1990 and ANSI X3.166 -1990.

These HFBR-5903 transceivers for 2 km multimode fiber backbones are supplied in the small 2 x 5 MTRJ package style for those designers who want to avoid the larger MIC/R (Media Interface Connector/Receptacle) defined in the FDDI PMD standard.

Agilent also provides several other FDDI products compliant with the PMD and SM-PMD standards. These HFBR-5903 are available with MIC/R, ST©, SC and FC connector styles. They are available in the 1 x 9, 1 x 13 and 2 x 11 transceiver and 16 pin transmitter/receiver package styles for those designs that require these alternate configurations.

The HFBR-5903 is also useful for both ATM 100 Mb/s interfaces and Fast Ethernet 100 Base-FX interfaces. The ATM Forum User-Network Interface (UNI) Standard, Version 3.0, defines the Physical Layer for 100 Mb/s Multimode Fiber Interface for ATM in Section 2.3 to be the FDDI PMD Standard. Likewise, the Fast Ethernet Alliance defines the Physical Layer for 100 Base-FX for Fast Ethernet to be the FDDI PMD Standard.

ATM applications for physical layers other than 100 Mb/s Multimode Fiber Interface are supported by Agilent. HFBR-5903 are available for both the singlemode and the multimode fiber SONET OC-3c (STS-3c), SDH (STM-1) ATM interfaces and the 155 Mb/s-194 MBd multimode fiber ATM interface as specified in the ATM Forum UNI. Contact your Agilent sales representative for information on these alternative FDDI and ATM products.
