Part Number: HFCT-5305

Description: The transmitter section consists of a 1300 nm Laser in an eye safe optical subassembly, (ELSA), which mates to the fibe...

HFCT-5305 General Description

The transmitter section consists of a 1300 nm Laser in an eye safe optical subassembly, (ELSA), which mates to the fiber cable. The ELSA is driven by a custom silicon bipolar IC which converts differential PECL logic signals, ECL referenced to a +5 V supply, into an analog Laser Diode drive current.

The ELSA is designed to be eye safe under a single fault condition. To be eye-safe, only one of two results can occur in the event of a single fault. The transmitter must either maintain a safe level of output power or the transmitter should be disabled.

The ELSA contains a patented optical fiber stub which restricts the level of light emerging from the connector port under all conditions. Overdriving the laser (even to destruction) cannot produce enough light to violate the IEC safe level. As a result the HFCT-5305 is intrinsically eye safe.

HFCT-5305 Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Reference
Storage Temperature	T_S	-40		+100	°C
Ambient Operating Temperature	T_A	10		+80	°C
Supply Voltage	V_CC	-0.5		7	V
Data Input Voltage	V_I	0.5		V_CC	V
Transmitter Differential Input Voltage	V_D	See Table Below		1.4	V	1

HFCT-5305 Features

• Compliant with Proposed Specifications for IEEE-802-3 Gigabit Ethernet
• 1300 nm Trenched BH Laser Source Technology
• Industry Standard 1 x 9 Package Style with Integral Duplex SC Connector
• Class 1 Laser Safety (Certification Pending)
• 3 km Links in 8/125 mm SMF Cables
• 550 m Links in 62.5/125 mm MMF Cables
• Single +5 V Power Supply Operation and PECL Logic Interfaces
• Wave Solder and Aqueous Wash Process Compatible
• Designed and Manufactured in an ISO 9000 Certified Facility

HFCT-5305 Typical Application

• Host to Host Interface

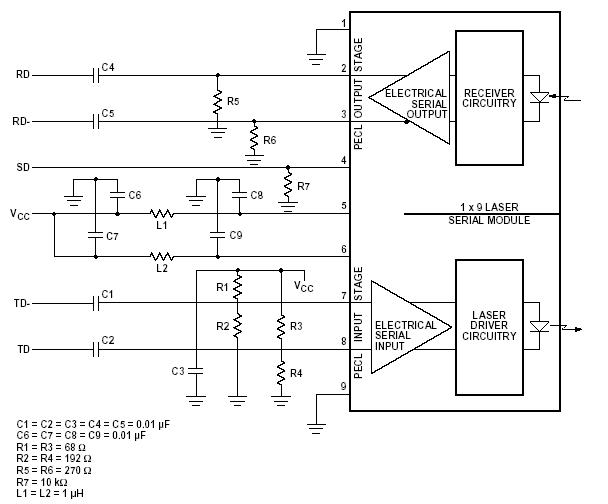

HFCT-5305 Connection Diagram
