HGTH20N40C1D

Features: • 20A, 400V and 500V• VCE(ON) 2.5V Max.• TFALL 1ms, 0.5ms• Low On-State Voltage• Fast Switching Speeds• High Input Impedance• Anti-Parallel DiodeApplication• Power Supplies• Motor Drives• Protective CircuitsPinoutSpecificationsC...

product image

HGTH20N40C1D Picture
See larger image
SeekIC No. : 004362172 Detail

HGTH20N40C1D: Features: • 20A, 400V and 500V• VCE(ON) 2.5V Max.• TFALL 1ms, 0.5ms• Low On-State Voltage• Fast Switching Speeds• High Input Impedance• Anti-Parallel DiodeA...

HGTH20N40C1D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HGTH20N40C1D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 20A, 400V and 500V
• VCE(ON) 2.5V Max.
• TFALL 1ms, 0.5ms
• Low On-State Voltage
• Fast Switching Speeds
• High Input Impedance
• Anti-Parallel Diode


Application

• Power Supplies
• Motor Drives
• Protective Circuits


Pinout

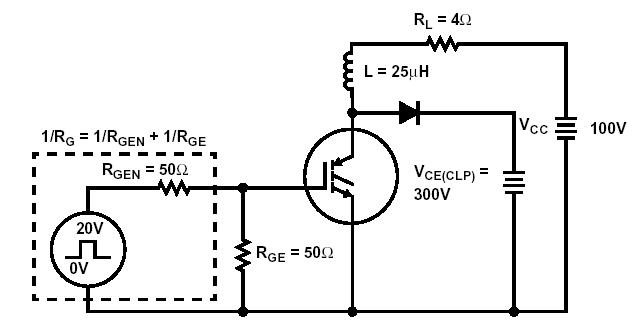

Connection Diagram


Specifications

Collector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . . VCES 400 500 V
Collector-Gate Voltage RGE = 1MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCGR 400 500 V
Gate-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .VGE ±20 ±20 V
Collector Current Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC 20 20 A
Collector Current Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . ICM 35 35 A
Diode Forward Current Continuous at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . .  IF25 35 35 A
Diode Forward Current Continuous at TJ = +90. . . . . . . . . . . . . . . . . . . .  . . . . . . . IF90 20 20 A
Power Dissipation Total at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 100 100 W
Power Dissipation Derating TC > +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 0.8 0.8 W/
Operating and Storage Junction Temperature Range . . . . . . TJ, TSTG -55 to +150 -55 to +150


Description

The HGTH20N40C1D, HGTH20N40E1D, HGTH20N50C1D, and HGTH20N50E1D are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for high voltage, low on-dissipation applications such as switching regulators and motor drivers. They feature a discrete antiparallel diode that shunts current around the IGBT in the reverse direction without introducing carriers into the depletion region. These HGTH20N40C1D, HGTH20N40E1D, HGTH20N50C1D, and HGTH20N50E1D  can be operated directly from low power integrated circuits.
