Part Number: HHS60









Description: HHS60 single-output DC/DC converters provide up to 60A output current in an industry-standard, half-brick package. This...


Urgent Purchase

HHS60 General Description


HHS60 single-output DC/DC converters provide up to 60A output current in an industry-standard, half-brick package. This high-density product converts standard telecom and datacom input voltages to regulated, low output voltages. The HHS60's leading-edge technology provides high efficiency. Its thermal design enables delivery of full-rated power at 55°C ambient temperature by using only 200 LFM of forced-air cooling without the need of a heatsink.

HHS60 Features

• Open-frame design with Insulated Metal Substrate
• Low profile 12.7 mm height
• Input/output isolation: 1500VDC, meets basic insulation requirements
• Start-up into high capacitive load
• Output back-drive capability
• Low conducted and radiated EMI
• Output overcurrent protection
• Output overvoltage protection
• Overtemperature protection
• Remote sense
• Set point accuracy ± 1.0%
• Remote on/off, positive or negative logic
• Output trim, positive or negative
• UL 1950 Recognition, CSA 22.2 No. 950-95 certification, TUV IEC950

HHS60 Typical Application

• Distributed power architectures
• Telecommunications equipment
• LAN/WAN applications
• Data processing applications

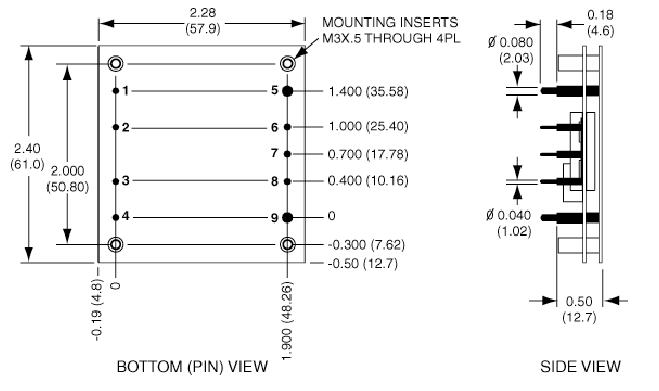

HHS60 Connection Diagram

HHS60 Connection Diagram
