Features:

·Pin-out adaptable to drive 30, 32 or 38
·LCD segments
·RC oscillator or high voltage (BP) clock input
·TTL compatible inputs (HI-8010 only)
·CMOS compatible inputs (HI-8110 only)
·Low power consumption
·Industrial (-40°C to +85°C) & Military (-55°C to +125°C) temperature ranges
·Pin for pin compatible with the Micrel
·MIC8010/8011 series and the AMI S4520
·series drivers
·Cascadable
·Military level processing available


Application

·Dichroic Liquid Crystal Displays
·Standard Liquid Crystal Displays
·Vacuum Fluorescent Displays


Pinout

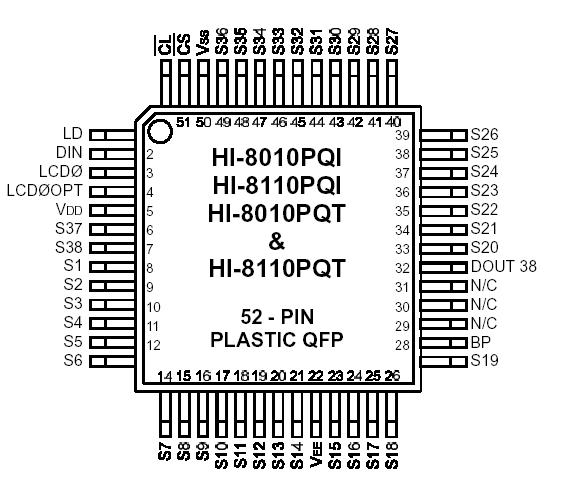

Connection Diagram


Specifications

Supply Voltage VDD............................................ VDD-35V to 0V
Supply Voltage VEE.......................................................0V to 7V
Voltage at any input, except LCDØ ................-0.3 to VDD+0.3V
Voltage at LCDØ input...............................VDD-35 to VDD+0.3V
DC Current any input pin..................................................10 mA
Power Dissipation..........................................................300 mW
Operating Temperature Range - Hi-Temp/Mil...-55° to +125°C
Storage Temperature Range...........................-65° to +150°C
Operating Temperature Range - Industrial.......-40° to +85°C


Description

The HI-8010 & HI-8110 high voltage display drivers are constructed of MOS P Channel and N Channel enhancement mode devices in a single monolithic structure. They are designed to drive high voltage liquid crystal displays by converting low level input signals (TTL on the HI-8010 and CMOS on the HI-8110) tohighvoltagedrivesignals.

Both devices can drive up to 38 segments and require minimal display-to-data source interfacing. Serial data is loaded and held in internal latches until newdisplaydatais received. The HI-8010 & HI-8110 are available in a variety of ceramic and plastic packag ing includingDIP; leaded and leadless chip carriers; and J-lead and gull-wing quadflat packs.
