HI-DAC80V

Features:

• DAC 80V/DAC 85V Alternative Source
• Monolithic Construction
• Fast Settling Time (Typ) . . . . . . . . . . . . . . . . . . . . 1.5ms
• Guaranteed Monotonicity
• Wafer Laser Trimmed Linearity, Gain, Offset
• Span Resistors On-Chip
• On-Board Reference
• Supply Operation . . . . . . . . . . . . . . . . . . . . . . . . . . ±12V




Application

• High Speed A/D Converters
• Precision Instrumentation
• CRT Display Generation

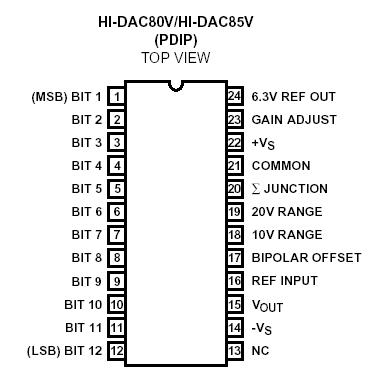

Pinout






Specifications

Power Supply Inputs
+V_S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +20V
-V_S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-20V
Reference
Input (Pin 16) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +VS
Output Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5mA
Digital Inputs (Bits 1 to 12) . . . . . . . . . . . . . . . . . . . . . -1V to +V_S




Description

The Hl-DAC80V/HI-DAC85V is a monolithic direct replacement for the popular DAC80 and AD DAC80. The HI-DAC85V is a monolithic direct replacement for the popular DAC85 and AD DAC85 as well as the HI-5685V. Single chip construction along with several design innovations make the Hl-DAC80V the optimum choice for low cost, high reliability applications.
Intersil' unique Dielectric Isolation (Dl) processing reduces internal parasitics resulting in fast switching times and minimum glitch. On board span resistors are provided for good tracking over temperature, and are laser trimmed to high accuracy.

Internally the Hl-DAC80V/HI-DAC85V eliminates code dependent ground currents by routing current from the positive supply to the internal ground node, as determined by an auxiliary R2R ladder. This results in a cancellation of code dependent ground currents allowing virtually zero variation in current through the package common, pin 21.

The Hl-DAC80V/HI-DAC85V is available as a voltage output device which is guaranteed over the 0oC to 75oC temperature range. The HI-DAC85V is available as a voltage output device which is guaranteed over the -25oC to 85oC temperature range. It includes a buried zener reference featuring a low temperature coefficient as well as an on board operational amplifier. The Hl-DAC80V requires only two power supplies and will operate in the range of ± (11.4V to 16.5V).
