Part Number: HI1386Y
Description: This is a specification that outlines the mechanical and electrical characteristics for the HI1386Y, 8-bit Flash A/D co...
- Table of contents:
HI1386Y
-
Suppliers
DataSheet
General Description
HI1386Y General Description
This is a specification that outlines the mechanical and electrical characteristics for the HI1386Y, 8-bit Flash A/D converter IC, in chip (die) form.
HI1386Y Maximum Ratings
Supply Voltage (AVEE, DVEE) . . . . . . . . . . . . . . . . . -7V to +0.5V
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . . . -2.7V to +0.5V
Reference Input Voltage
VRT, VRB, VRM. . . . . . . . . . . . . . . . . . . . . . . . . . . -2.7V to +0.5V
|VRT -VRB|. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Digital Input Voltage
CLK, CLK, MINV, LINV . . . . . . . . . . . . . . . . . . . . . . . -4V to +0.5V
|CLK-CLK | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V
VRM Pin Input Current (IVRM) . . . . . . . . . . . . . . . .-3mA to +3mA
Digital Output Current (ID0 to ID7) . . . . . . . . . . . .-30mA to 0mA
Storage Temperature Range (TSTG) . . . . . . . . . . -65 to +150
Analog Input Voltage (VIN) . . . . . . . . . . . . . . . . . -2.7V to +0.5V
Reference Input Voltage
VRT, VRB, VRM. . . . . . . . . . . . . . . . . . . . . . . . . . . -2.7V to +0.5V
|VRT -VRB|. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5V
Digital Input Voltage
CLK, CLK, MINV, LINV . . . . . . . . . . . . . . . . . . . . . . . -4V to +0.5V
|CLK-CLK | . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V
VRM Pin Input Current (IVRM) . . . . . . . . . . . . . . . .-3mA to +3mA
Digital Output Current (ID0 to ID7) . . . . . . . . . . . .-30mA to 0mA
Storage Temperature Range (TSTG) . . . . . . . . . . -65 to +150
HI1386Y Features
• Differential Linearity Error . . . . . . . . ±0.5 LSB or Less
• Integral Linearity Error . . . . . . . . . . . ±0.5 LSB or Less
• Built-In Integral Linearity Compensation Circuit
• High-Speed Operation with Maximum Conversion
Rate of 75 MSPS (Min)
• Low Input Capacitance . . . . . . . . . . . . . . . . 17pF (Typ)
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 150MHz
(Min. for Full Scale Input)
• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . -5.2V
• Low Power Consumption . . . . . . . . . . . . . 580mW (Typ)
• Low Error Rate
• Operable at 50% Clock Duty Cycle
• Capable of Driving 50W Loads
• Integral Linearity Error . . . . . . . . . . . ±0.5 LSB or Less
• Built-In Integral Linearity Compensation Circuit
• High-Speed Operation with Maximum Conversion
Rate of 75 MSPS (Min)
• Low Input Capacitance . . . . . . . . . . . . . . . . 17pF (Typ)
• Wide Analog Input Bandwidth . . . . . . . . . . . . . 150MHz
(Min. for Full Scale Input)
• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . -5.2V
• Low Power Consumption . . . . . . . . . . . . . 580mW (Typ)
• Low Error Rate
• Operable at 50% Clock Duty Cycle
• Capable of Driving 50W Loads
HI1386Y Typical Application
• Video Digitizing
• HDTV (High Definition TV)
• Direct RF Down-Conversion
• Communication Systems
• Radar Systems
• Digital Oscilloscopes
• HDTV (High Definition TV)
• Direct RF Down-Conversion
• Communication Systems
• Radar Systems
• Digital Oscilloscopes

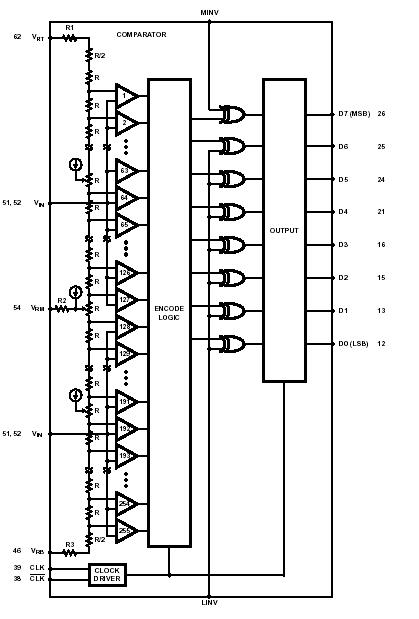

HI1386Y Connection Diagram
HI1386Y
