HI5628

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . 125MSPS
• Low Power . . . . . . . . . . . . . . 330mW at 5V, 170mW at 3V
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . ±0.25 LSB
• Differential Linearity . . . . . . . . . . . . . . . . . . . . . ±0.25 LSB
• Channel Isolation (Typ). . . . . . . . . . . . . . . . . . . . . . . 80dB
• SFDR to Nyquist at 10MHz Output . . . . . . . . . . . . 60dBc
• Internal 1.2V Bandgap Voltage Reference
• Single Power Supply from +5V to +3V
• CMOS Compatible Inputs
• Excellent Spurious Free Dynamic Range




Application

• Direct Digital Frequency Synthesis
• Wireless Communications
• Signal Reconstruction
• Arbitrary Waveform Generators
• Test Equipment
• High Resolution Imaging Systems

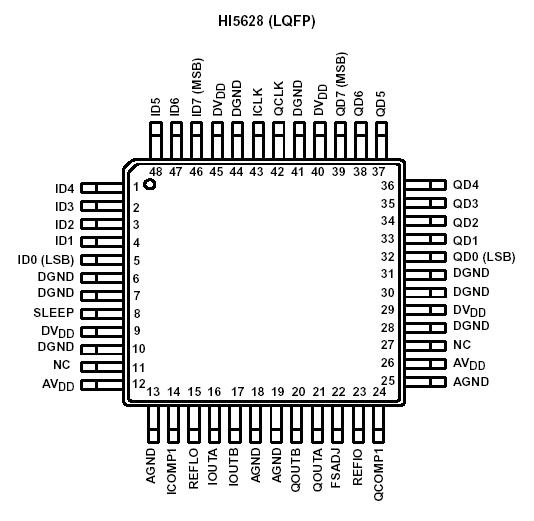

Pinout






Specifications

Digital Supply Voltage DV_DD to DCOM . . . . . . . . . . . . . . . . . +5.5V
Analog Supply Voltage AV_DD to ACOM. . . . . . . . . . . . . . . . . +5.5V
Grounds, ACOM TO DCOM . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Digital Input Voltages (D7-D0, CLK, SLEEP). . . . . . . .DV_DD + 0.3V
Internal Reference Output Current. . . . . . . . . . . . . . . . . . ±50µA
Reference Input Voltage Range. . . . . . . . . . . . . . . . . AV_DD + 0.3V
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . 24mA




Description
