HI5800

Features:

• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . . . . .3MSPS
• 12-Bit, No Missing Codes Over Temperature
• Integral Linearity Error . . . . . . . . . . . . . . . . . . . . . 1.0 LSB
• Buffered Sample and Hold Amplifier
• Precision Voltage Reference
• Input Signal Range. . . . . . . . . . . . . . . . . . . . . . . . . . ±2.5V
• 20MHz Input BW Allows Sampling Beyond Nyquist
• Zero Latency/No Pipeline Delay


Application

• High Speed Data Acquisition Systems
• Medical Imaging
• Radar Signal Analysis
• Document and Film Scanners
• Vibration/Waveform Spectrum Analysis
• Digital Servo Control

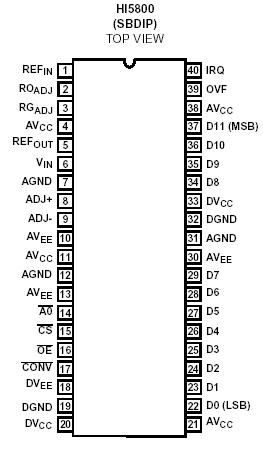

Pinout




Specifications

Supply Voltages
AVCC or DV_CC to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5.5V
AVEE or DV_EE to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -5.5V
DGND to AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.3V
Analog Input Pins
Reference Input REFIN . . . . . . . . . . . . . . . . . . .. . . . . . . . +2.75V
Signal Input VIN . . . . . . . . . . . . . . . . . . . . . . . . . ±(REFIN +0.2V)
ROADJ, RGADJ, ADJ+, ADJ-. . . . . . . . . . . . . . . . . ..  . . . VEE to V_CC
Digital I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND to V_CC


Description

The HI5800 is a monolithic, 12-bit, sampling Analog-to- Digital Converter fabricated in the HBC10 BiCMOS process.

It is a complete subsystem containing a sample and hold amplifier, voltage reference, two-step subranging A/D, error correction, control logic, and timing generator. The HI5800 is designed for high speed applications where wide bandwidth, accuracy and low distortion are essential.
