Part Number: HIN241A
Description: The HIN202A-HIN241A family of high-speed RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-23...
- Table of contents:
HIN241A
-
Suppliers
DataSheet
General Description
HIN241A General Description
The HIN202A-HIN241A family of high-speed RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN205A and HIN235A require no external capacitors and are ideally suited for applications where circuit board space is critical. The family of devices offers a wide variety of high-speed RS- 232 transmitter/receiver combinations to accommodate various applications (see Selection Table).
The HIN205A, HIN206A, HIN211A, HIN213A, HIN235A, HIN236A, and HIN241A feature a low power shutdown mode to conserve energy in battery powered applications. In addition, the HIN213A provides two active receivers in shutdown mode allowing for easy "wakeup" capability. The drivers feature true TTL/CMOS input compatibility, slew rate-limited output, and 300Ω power-off source impedance. The receivers can handle up to ±30V input, and have a 3kΩ
to 7kΩ input impedance. The receivers also feature hysteresis to greatly improve noise rejection.
HIN241A Maximum Ratings
VCC to Ground. . . . . . . . . . . . . . . . . . . . . .(GND -0.3V) <VCC < 6V
V+ to Ground . . . . . . . . . . . . . . . . . . . . . . (VCC -0.3V) <V+ < 12V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . -12V < V- < (GND +0.3V)
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . . . . . . (V- -0.3V) < VIN < (V+ +0.3V)
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . .(V- -0.3V) < VTXOUT < (V+ +0.3V)
ROUT . . . . . . . . . . . . . . . . . (GND -0.3V) < VRXOUT < (V+ +0.3V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
ROUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
ESD Classification . . . . . . . . . . . . . . . . . . . See Specification Table
Thermal Information
Thermal Resistance (Typical, Note 1) JA (
oC/W)
16 Ld SOIC (N) Package . . . . . . . . . . . . . . . . . . . . . 110
16 Ld SOIC (W) Package. . . . . . . . . . . . . . . . . . . . . 100
16 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 155
16 Ld PDIP Package . . . . . . . . . . . . . . . . . . . . . . . . 90
24 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . 75
24 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 135
24 Ld PDIP (N) Package . . . . . . . . . . . . . . . . . . . . . 70
24 Ld PDIP (W) Package . . . . . . . . . . . . . . . . . . . . . 55
28 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . 70
28 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 100
Maximum Junction Temperature (Plastic Package) . . . . . . .150oC
Maximum Storage Temperature Range. . . . . . . . .-65oC to 150oC
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . 300oC
(SOIC and SSOP - Lead Tips Only)
V+ to Ground . . . . . . . . . . . . . . . . . . . . . . (VCC -0.3V) <V+ < 12V
V- to Ground. . . . . . . . . . . . . . . . . . . . . . -12V < V- < (GND +0.3V)
Input Voltages
TIN . . . . . . . . . . . . . . . . . . . . . . . . . (V- -0.3V) < VIN < (V+ +0.3V)
RIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30V
Output Voltages
TOUT . . . . . . . . . . . . . . . . . . . .(V- -0.3V) < VTXOUT < (V+ +0.3V)
ROUT . . . . . . . . . . . . . . . . . (GND -0.3V) < VRXOUT < (V+ +0.3V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
ROUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
ESD Classification . . . . . . . . . . . . . . . . . . . See Specification Table
Thermal Information
Thermal Resistance (Typical, Note 1) JA (
oC/W)
16 Ld SOIC (N) Package . . . . . . . . . . . . . . . . . . . . . 110
16 Ld SOIC (W) Package. . . . . . . . . . . . . . . . . . . . . 100
16 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 155
16 Ld PDIP Package . . . . . . . . . . . . . . . . . . . . . . . . 90
24 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . 75
24 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 135
24 Ld PDIP (N) Package . . . . . . . . . . . . . . . . . . . . . 70
24 Ld PDIP (W) Package . . . . . . . . . . . . . . . . . . . . . 55
28 Ld SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . 70
28 Ld SSOP Package . . . . . . . . . . . . . . . . . . . . . . . 100
Maximum Junction Temperature (Plastic Package) . . . . . . .150oC
Maximum Storage Temperature Range. . . . . . . . .-65oC to 150oC
Maximum Lead Temperature (Soldering 10s) . . . . . . . . . . . 300oC
(SOIC and SSOP - Lead Tips Only)
HIN241A Features
Meets All RS-232E and V.28 Specifications
Requires Only 0.1µF or Greater External Capacitors
(HIN205A, HIN235A and Require No External Capacitors)
High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . 230kbit/s
Two Receivers Active in Shutdown Mode (HIN213A)
Requires Only Single +5V Power Supply
Onboard Voltage Doubler/Inverter
Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA
Low Power Shutdown Function (Typ) . . . . . . . . . . . . 1µA
Three-State TTL/CMOS Receiver Outputs
Multiple Drivers
- ±10V Output Swing for +5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
Multiple Receivers
- ±30V Input Voltage Range
-3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection
Requires Only 0.1µF or Greater External Capacitors
(HIN205A, HIN235A and Require No External Capacitors)
High Data Rate. . . . . . . . . . . . . . . . . . . . . . . . . . 230kbit/s
Two Receivers Active in Shutdown Mode (HIN213A)
Requires Only Single +5V Power Supply
Onboard Voltage Doubler/Inverter
Low Power Consumption (Typ) . . . . . . . . . . . . . . . . . 5mA
Low Power Shutdown Function (Typ) . . . . . . . . . . . . 1µA
Three-State TTL/CMOS Receiver Outputs
Multiple Drivers
- ±10V Output Swing for +5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
Multiple Receivers
- ±30V Input Voltage Range
-3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection
HIN241A Typical Application
Any System Requiring High-Speed RS-232
Communication Ports
- Computer - Portable, Mainframe, Laptop
- Peripheral - Printers and Terminals
- Instrumentation, UPS
- Modems
Communication Ports
- Computer - Portable, Mainframe, Laptop
- Peripheral - Printers and Terminals
- Instrumentation, UPS
- Modems

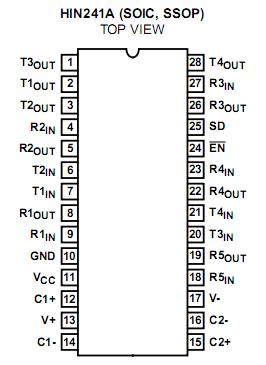

HIN241A Connection Diagram
HIN241A
