Part Number: HIP6004B

Description: The HIP6004B provides complete control and protection for a DC-DC converter optimized for high-performance microprocess...

HIP6004B General Description

The HIP6004B provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive two N-Channel MOSFETs in a synchronous-rectified buck topology. The HIP6004B integrates all of the control, output adjustment, monitoring and protection functions into a single package.

The output voltage of the converter is easily adjusted and precisely regulated. The HIP6004B includes a fully TTLcompatible 5-input digital-to-analog converter (DAC) that adjusts the output voltage from 1.3VDC to 2.05VDC in 0.05V and from 2.1VDC to 3.5VDC in 0.1V increments steps. The precision reference and voltage-mode regulator hold the selected output voltage to within ±1% over temperature and line voltage variations.

The HIP6004B provides simple, single feedback loop, voltage-mode control with fast transient response. It includes a 200kHz free-running triangle-wave oscillator that is adjustable from below 50kHz to over 1MHz. The error amplifier features a 15MHz gain-bandwidth product and 6V/µs slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0% to 100%.

The HIP6004B monitors the output voltage with a window comparator that tracks the DAC output and issues a Power Good signal when the output is within ±10%. The HIP6004B protects against over-current and overvoltage conditions by inhibiting PWM operation. Additional built-in overvoltage protection triggers an external SCR to crowbar the input supply. The HIP6004B monitors the current by using the rDS(ON) of the upper MOSFET which eliminates the need for a current sensing resistor.

HIP6004B Maximum Ratings

Supply Voltage, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+15V
Boot Voltage, VBOOT - VPHASE . . . . . . . . . . . . . . . . . . . . . . . .+15V
Input, Output or I/O Voltage. . . . . . . . . . . .GND -0.3V to V_CC +0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 2

HIP6004B Features

• Drives Two N-Channel MOSFETs
• Operates from +5V or +12V Input
• Simple Single-Loop Control Design
         - Voltage-Mode PWM Control
• Fast Transient Response
         - High-Bandwidth Error Amplifier
         - Full 0% to 100% Duty Ratio
• Excellent Output Voltage Regulation
         - ±1% Over Line Voltage and Temperature
• TTL-Compatible 5-Bit Digital-to-Analog Output Voltage Selection
         - Wide Range . . . . . . . . . . . . . . . . . . . 1.3VDC to 3.5VDC
         - 0.1V Binary Steps . . . . . . . . . . . . . . 2.1VDC to 3.5VDC
         - 0.05V Binary Steps . . . . . . . . . . . . 1.3VDC to 2.05VDC
• Power-Good Output Voltage Monitor
• Over-Voltage and Over-Current Fault Monitors
         - Does Not Require Extra Current Sensing Element, Uses MOSFET's rDS(ON)
• Small Converter Size
         - Constant Frequency Operation
         - 200kHz Free-Running Oscillator Programmable from 50kHz to over 1MHz

HIP6004B Typical Application

• Power Supply for Pentium®, Pentium Pro, Pentium II, PowerPC™, K6™, 6X86™ and Alpha™ Microprocessors
• High-Power 5V to 3.xV DC-DC Regulators
• Low-Voltage Distributed Power Supplies

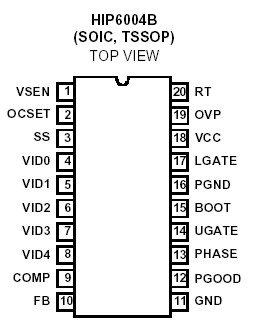

HIP6004B Connection Diagram

HIP6004B datasheet
