HLMP-3962

Forward Current :
Forward Voltage :
Illumination Color : Green
Packaging : Bulk
Lens Color/Style : Tinted, Diffused
LED Size : T-1 3/4
Viewing Angle : 60 deg
Wavelength/Color Temperature : 569 nm
Luminous Intensity : 10.6 mcd


Features:

• High Intensity
• Choice of 4 Bright Colors
High Efficiency Red
Orange
Yellow
High Performance Green
• Popular T-13/4 Diameter
Package
• Selected Minimum
Intensities
• Wide Viewing Angle
• General Purpose Leads
• Reliable and Rugged
• Available on Tape and Reel

Specifications

Parameter	HER/Orange	Yellow	Green/Emerald Green	Units
Peak Forward Current	90	60	90	mA
Average Forward Current[1]	25	20	25	mA
DC Current[2]	30	20	30	mA
Power Dissipation[3]	135	85	135	mW
Reverse Voltage (IR = 100 µA)	5	5	5	V
Transient Forward Current[4] (10 µsec Pulse)	500	500	500	mA
LED Junction Temperature	110	110	110
Operating Temperature Range	-55 to +100	-55 to +100	-20 to +100
Storage Temperature Range			55 to +100
Lead Soldering Temperature [1.6 mm (0.063 in.) from body]	60 for 5 seconds

Description

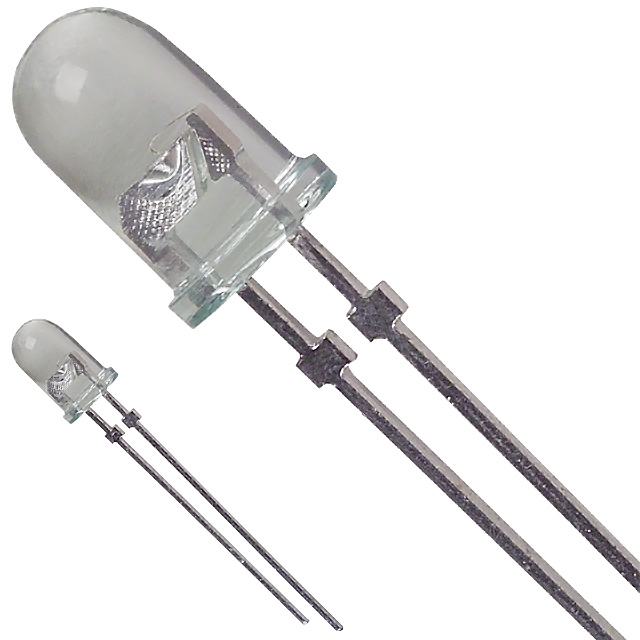

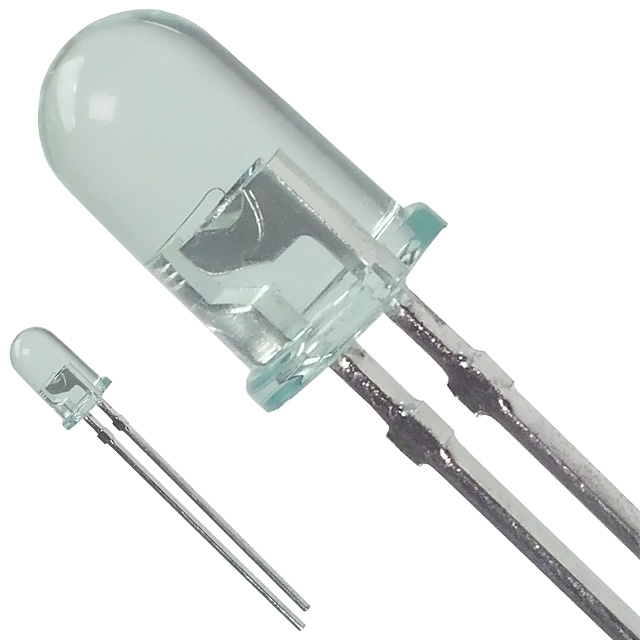

This HLMP-3962 T-1 3/4 tinted, diffused LED lamp is widely used in general purpose indicator applications. Diffusants, tints, and optical design are balanced to yield superior light output and wide viewing angle.

Parameters:

Technical/Catalog Information	HLMP-3962
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Color	Green
Lens Style/Size	Round, 5mm, T-1 3/4
Millicandela Rating	10.6mcd
Voltage - Forward (Vf) Typ	2.1V
Wavelength - Dominant	569nm
Wavelength - Peak	565nm
Current - Test	10mA
Viewing Angle	60°
Lens Type	Diffused, Green Tinted
Luminous Flux	9 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HLMP 3962 HLMP3962 516 1334 ND 5161334ND 516-1334
