MFG:OTHER Package Cooled:DIP/SOP D/C:08+
MFG: OTHER
Package Cooled: DIP/SOP
D/C: 08+
Description: These T-3/4 subminiature LED lamps feature a squarebase, transfer molded package for surface mount applications. A t...
These T-3/4 subminiature LED lamps feature a squarebase, transfer molded package for surface mount applications. A tinted diffused or water clear epoxy lens - available in AIGaAs red, high-efficiency red, green, and yellow - produces wide-angle beam emission and sharp on/off contrast. They are available with gullwing lead bends for top mounting, as well as yoke lead bends and Z-bends for mounting to the back of a PCB.
| Parameter |
HLMP-6305A MV6700A |
HLMP-6405A MV6300A |
HLMP-6505A MV6400A |
HLMP-Q101A HLMP-Q105A HLMP-Q150A HLMP-Q155A |
Units |
| Power Dissipation |
135 |
85 |
135 |
85 |
mW |
| Average Forward Current |
30 |
20 |
30 |
30 |
mA |
| Peak Forward Current (1 µS pulsewidth, 0.1% DF) |
90 |
60 |
90 |
300 |
mA |
| Lead Soldering Time at 260 |
5 |
5 |
5 |
5 |
sec |
| Operating Temperature |
-55 to +100 |
-55 to +100 |
-55 to +100 |
-20 to +100 |
|
| Storage Temperature |
-55 to +100 |
-55 to +100 |
-55 to +100 |
-20 to +100 |

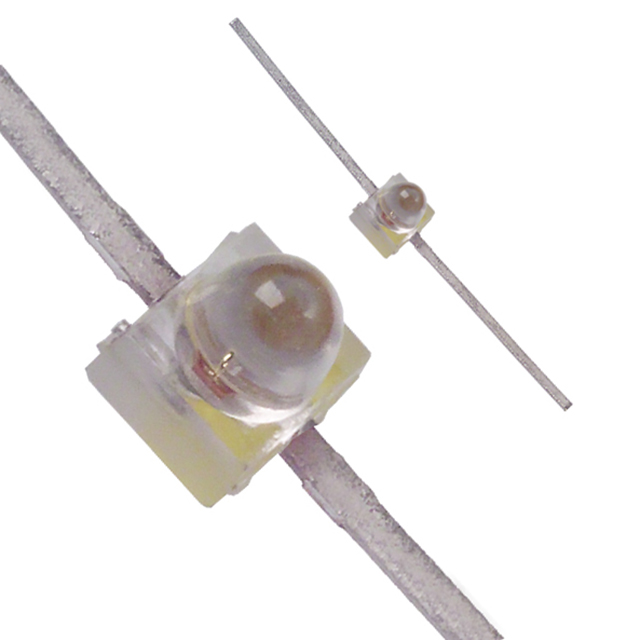

HLMP-6405A
PDF/DataSheet Download
LED YELLOW WATER CLEAR 1.9MM
Dome PackagesThe HLMP-6405 Series dome lamps for use as indicators use an untinted, nondiffused lens to provide a high luminous intensity within a narrow radiation pattern. Lead ConfigurationsAll of these HLMP-6405 devices are made by encapsulating LED chip...
Dome PackagesThe HLMP-6400 Series dome lamps for use as indicators use a tinted, diffused lens to provide a wide viewing angle with a high on-off contrast ratio. Lead ConfigurationsAll of these HLMP-6400 Series devices are made by encapsulating LED chips on...
Dome PackagesThe HLMP-6400 Series dome lamps for use as indicators use a tinted, diffused lens to provide a wide viewing angle with a high on-off contrast ratio. Lead ConfigurationsAll of these HLMP-6400 Series devices are made by encapsulating LED chips on...
Dome PackagesThe HLMP-6400 Series dome lamps for use as indicators use a tinted, diffused lens to provide a wide viewing angle with a high on-off contrast ratio. Lead ConfigurationsAll of these HLMP-6400 Series devices are made by encapsulating LED chips on...
Dome PackagesThe HLMP-6400 Series dome lamps for use as indicators use a tinted, diffused lens to provide a wide viewing angle with a high on-off contrast ratio. Lead ConfigurationsAll of HLMP-6400 Series are made by encapsulating LED chips on axial lead fr...
