Part Number: HM6208H











Urgent Purchase

HM6208H Maximum Ratings

Parameter
Symbol
Value
Unit
Voltage on any pin relative to VSS
Vin
0.5*1 to +7.0
V
Power dissipation
PT
1.0
W
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
Storage temperature range under bias    Tbias
10 to +85
°C

Notes:
1. Vin min : 2.5 V for pulse width 10 ns.

HM6208H Features

`  Single 5 V supply and high density 24-pin package
`  High speed: Access time 25/35/45 ns (max)
`  Low power
     - Operation: 300 mW (typ)
     - Standby: 100 W (typ)
     30 mW (typ) (L-version)
`  Completely static memory required
     - No clock or timing strobe required
`  Equal access and cycle time
`  Directly TTL compatible: All inputs and outputs
`  Battery backup operation capability (L-version)

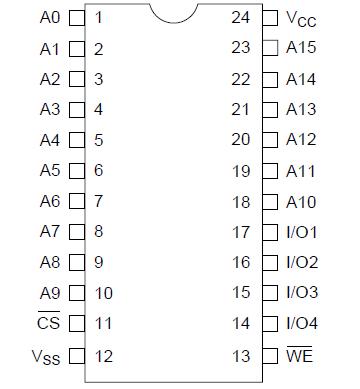

HM6208H Connection Diagram

HM6208H  Connection Diagram
