HMC1001

Series: -
Current - Output (Max): -
Type: Linear
Manufacturer: Honeywell Microelectronics & Precision Sensors
Output Type: Differential Voltage
Current - Supply: -
Features: Compass - One Axis
Operating Temperature: -55°C ~ 150°C
Packaging: Tube
Sensing Range: ±2g
Voltage - Supply: 5 V ~ 12 V
Package / Case: 8 Pin SIP
Supplier Device Package: 8- Pin SIP


Features:

• Designed for 1- and 2-axis to work together to provide 3-axis (x, y, z) sensing
• 1-axis part in an 8-pin SIP or an 8-pin SOIC or a ceramic 8-pin DIP package
• 2-axis part in a 16-pin or 20-pin SOIC package


Application

·Compassing
·Navigation Systems
·Attitude Reference
·Traffic Detection
·Medical Devices
·Non-Contact Switch

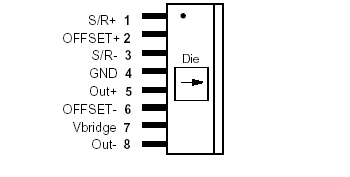

Pinout

Description

onfigured as a 4-element wheatstone bridge, these magnetoresistive sensors convert magnetic fields to a differential output voltage, capable of sensing magnetic fields as low as 30 µgauss. These HMC1001 MRs offer a small, low cost, high sensitivity and high reliability solution for low field magnetic sensing.

Parameters:

Technical/Catalog Information	HMC1001
Vendor	Honeywell Microelectronics & Precision Sensors
Category	Sensors, Transducers
Features	Compass - One Axis
Package / Case	8 Pin SIP
Current - Output (Max)	-
Sensing Range	±2g
Operating Temperature	-55°C ~ 150°C
Output Type	Analog
Type	Linear Field Sensor
Voltage - Supply	12V
Current - Supply	-
Drawing Number	*
RoHS Status	RoHS Non-Compliant
Other Names	HMC1001 HMC1001 342 1001 5 ND 34210015ND 342-1001-5
