Product Details

Description

Features:

Broadband Performance: DC - 8 GHz
Very High Isolation: 45 dB @ 6 GHz
Non-Refl ective Design
Low Cost MSOP-8 Package: 14.8 mm²

Application

The HMC270MS8G is ideal for DC - 8.0 GHz applications:
• CATV
• MMDS & WirelessLAN
• Wireless Local Loop

Pinout

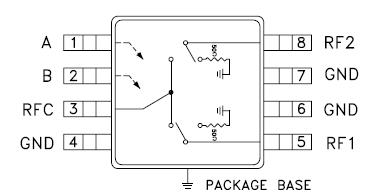

Connection Diagram

Specifications

Max RF Input Power, Vctl = -5V		+24 dBm
Control Voltage Range		+0.5 to -7.5 Vdc
Storage Temperature		-65 to +150 °C
Operating Temperature		-40 to +85 °C

Description

The HMC270MS8G is a broadband non-refl ective GaAs SPDT switch in an 8 lead MSOP grounded base surface mount plastic package. Covering DC to 8 GHz, the switch offers excellent isolation from 70 to 35 dB. The negative control voltage of -5 volts allows operation down to DC. If positive control is required along with high isolation, see the DC to 3.5 GHz HMC270MS8G non-refl ective SPDT.
