HMC272MS8

Features: Ultra Small Package: MSOP8LO / RF Isolation: 32 dBIP3 (Input): +20 dBmApplicationThe HMC272MS8 is ideal for:• Up or Down Converter for PCS• W-CDMA• 2.4 GHz ISM• MMDSPinoutSpecifications RF / IF Input +13 dBm LO Drive ...

product image

HMC272MS8 Picture
See larger image
SeekIC No. : 004363805 Detail

HMC272MS8: Features: Ultra Small Package: MSOP8LO / RF Isolation: 32 dBIP3 (Input): +20 dBmApplicationThe HMC272MS8 is ideal for:• Up or Down Converter for PCS• W-CDMA• 2.4 GHz ISM• MMD...

HMC272MS8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC272MS8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultra Small Package: MSOP8
LO / RF Isolation: 32 dB
IP3 (Input): +20 dBm


Application

The HMC272MS8 is ideal for:
• Up or Down Converter for PCS
• W-CDMA
• 2.4 GHz ISM
• MMDS


Pinout

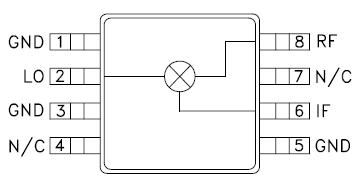

Connection Diagram


Specifications

RF / IF Input +13 dBm
LO Drive +27 dBm
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC272MS8 is an ultra miniature single balanced mixer in an 8 lead plastic surface mount Mini Small Outline Package (MSOP). This passive MMIC mixer is constructed of GaAs Schottky diodes and a novel planar transformer balun on the HMC272MS8 chip. The RF port is balanced via the MMIC balun while the LO port is connected directly to the diodes. The consistent MMIC performance will improve system operation and assure regulatory compliance.
