HMC274QS16

Features:

·1 dB LSB Steps to 31 dB
·Single Positive Control (+3 to +5V) Per Bit
·+/- 0.5 dB Typical Bit Error
·Small QSOP16 Plastic Package


Application

The HMC274QS16 is ideal for:
• Cellular/PCS/3G Infrastructure
• 2.4 GHz ISM Radios
• Wireless Data

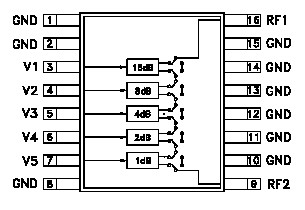

Pinout




Specifications

Control Voltage (V1 - V5)	Vdd + 0.5 Vdc
Bias Voltage (Vdd)	+8.0 Vdc
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85
RF Input Power (0.7 - 2.7 GHz)	+30 dBm

Description

The HMC274QS16 is a broadband 5-bit positive control GaAs IC digital attenuator in a 16 lead QSOP plastic package. Covering 0.7 to 2.7 GHz the insertion loss is typically less than 2.3 dB. The HMC274QS16 attenuator bit values are 1 (LSB), 2, 4, 8, and 16 dB for a total attenuation of 31 dB. Accuracy is excellent at ± 0.5 dB typical with an IIP3 of up to +50 dBm. Five bit control voltage inputs, toggled between 0 and +3 to +5 volts, are used to select each attenuation state. A single Vdd bias of +3 to +5 volts applied through an external 5K Ohm resistor is required.
