Product Details

Description

Features:

Passive Topology
LO / RF Isolation: 26 dB
Input IP3: +21 dBm
Low Conversion Loss: 9 dB
RoHS Compliant MSOP-8 Package

Application

The HMC277MS8 / HMC277MS8E is ideal for:
• Cellular / 3G Infrastructure
• Basestations & Repeaters
• GSM, CDMA & WCDMA
• Subscribers & Portables

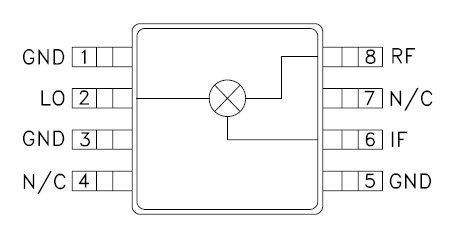

Pinout

Connection Diagram

Specifications

RF / IF Input                              +13 dBm
LO Drive                                   +27 dBm
Storage Temperature    -65 to +150 °C
Operating Temperature   -40 to +85 °C
ESD Sensitivity (HBM) Class                1A

Description

The HMC277MS8(E) are general purpose single balanced mixers in 8 lead plastic surface mount Mini Small Outline Packages (MSOP). This passive MMIC mixer is constructed of GaAs Schottky diodes and a novel planar transformer balun on the chip. The HMC277MS8(E) requires no external matching components, and is ideal for upconverter and downconverter applications.The RF port is balanced via the MMIC balun while the LO port is connected directly to the diodes. This product is pin for pin compatible with the HMC272MS8(E) which operates from 1.7 to 3.0 GHz.
