HMC284MS8G

Features: High Isolation: >45 dBPositive control: 0/+5VNon-Refl ective DesignUltra Small Pakcage: MSOP8GApplicationThe HMC284MS8G is ideal for:• Cellular/PCS Base Stations• 2.4 GHz ISM• 3.5 GHz Wireless Local LoopPinoutSpecifications Control Voltage Ra...

product image

HMC284MS8G Picture
See larger image
SeekIC No. : 004363820 Detail

HMC284MS8G: Features: High Isolation: >45 dBPositive control: 0/+5VNon-Refl ective DesignUltra Small Pakcage: MSOP8GApplicationThe HMC284MS8G is ideal for:• Cellular/PCS Base Stations• 2.4 GHz IS...

HMC284MS8G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMC284MS8G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Isolation: >45 dB
Positive control: 0/+5V
Non-Refl ective Design
Ultra Small Pakcage: MSOP8G


Application

The HMC284MS8G is ideal for:
• Cellular/PCS Base Stations
• 2.4 GHz ISM
• 3.5 GHz Wireless Local Loop


Pinout

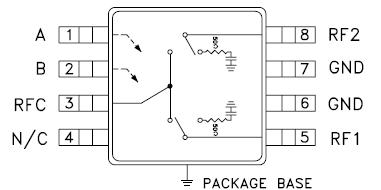

Connection Diagram


Specifications

Control Voltage Range -0.2 to +7.5 Vdc
Channel Temperature 150 °C
Thermal Resistance
(Insertion Loss Path)		 140 °C/W
Thermal Resistance
(Terminated Path)		 190 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C
RF Input Power Vctl = 0/+5V +26 dBm



Description

The HMC284MS8G is a low-cost SPDT switch in an 8-lead grounded base MSOP package. The design has been optimized to provide high isolation with minimal insertion loss for medium and low power applications. On-chip circuitry allows positive voltage control operation at very low DC currents with control inputs compatible with CMOS and most TTL logic families. In the "OFF" state, RF1 and RF2 are non-refl ective. See refl ective high isolation SPDT version, HMC194MS8.
