Features:

No External Components Required
LO / RF Isolation: 30 dB
Input IP3: +20 dBm
Ultra Small SOT26 Package



Application

The HMC285 is ideal for:
• PCS
• W-CDMA
• 2.4 GHz ISM
• MMDS



Pinout

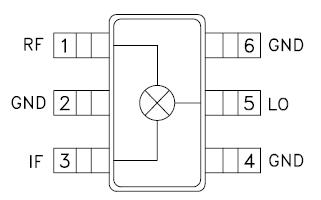

  Connection Diagram


Specifications

RF / IF Input +13 dBm
LO Drive +27 dBm
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC285 is an ultra miniature single balanced mixer in an 6 lead plastic surface mount SOT26 package. This HMC285 passive MMIC mixer is constructed of GaAs Schottky diodes and a novel planar transformer balun on the chip. The RF port is balanced via the MMIC balun while the LO port is connected directly to the diodes. The consistent MMIC performance will improve system operation without the need for external components. The SOT26 package is the smallest footprint available for a complete single-balanced mixer, 0.118" x 0.118" (3.0mm x 3.0mm).
