Features:

2.4 GHz LNA
Noise Figure: 1.7 dB
Gain: 19 dB
Single Supply: +3V
No External Components
Ultra Small SOT26 Package



Application

The HMC286 is ideal for:
• BlueTooth
• Home RF
• 802.11 WLAN Radios
• PCMCIA Platforms



Pinout

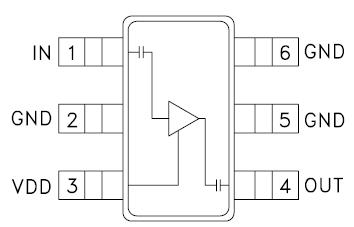

  Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +7.0 Vdc
RF Input Power (RFin)(Vdd = +3.0 Vdc) 0 dBm
Channel Temperature 150 °C
Continuous Pdiss (T = 85 °C)
(derate 6.35 mW/°C above 85 °C)
0.413 W
Thermal Resistance
(channel to lead)
157 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC286 is a low cost Low Noise Amplifi er (LNA) for 2.3 to 2.5 GHz spread spectrum applications. The LNA provides 19 dB of gain and a 1.7 dB noise fi gure from a single positive +3V power supply that consumes only 8.5mA. The typical output 1 dB compression point is +6 dBm at 2.4 GHz. The compact LNA design utilizes on-chip matching for repeatable gain and noise fi gure performance. In addition, eliminating the external matching circuitry also reduces the overall size of the LNA function. The HMC286 was designed to meet the size constraints of PCMCIA platforms and uses the SOT26 package that occupies 0.118" x 0.118", which makes it a small fully integrated solution that can be easily implemented with other 2.4 GHz ASICs.
