Product Details

Description

Features:

Pout: -7 dBm
Phase Noise: -105 dBc/Hz @100 KHz Typ.
No External Resonator Needed
Single Supply: 5V @ 290 mA
QSOP16G SMT Package

Application

Low noise MMIC VCO w/Divide-by-8
for Ku-Band applications such as:
• Pt to Pt Radios
• Multi-Pt Radios / LMDS
• VSAT

Pinout

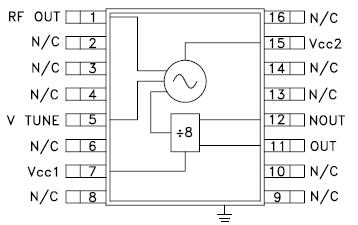

Connection Diagram

Specifications

Vcc1, Vcc2	5.5 V
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C
Vtune	0 to 11V Max.

Description

The HMC401QS16G is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC401QS16G integrates a resonator, negative resistance device, varactor diode and divide-by-8 prescaler. The VCO's phase noise performance is excellent over temperature, shock, and process due to the oscillator's monolithic structure. Power output is -7 dBm typical from a 5V supply voltage. The voltage controlled oscillator is packaged in a low cost, surface mount 16 leaded QSOP package with an exposed base for improved RF and thermal performance.
