HN27C256AFP

Features: ` High speed Access time: 120/150 ns (max)` Low power dissipation Active mode: 25 mW (typ) (f = 1 MHz) Standby mode: 5 W (typ)` High reliability and fast programming Programming voltage: +12.5 V DC Fast High-Reliability Programming Algorithm available` Device identifier mode Manufacturer...

product image

HN27C256AFP Picture
See larger image
SeekIC No. : 004364959 Detail

HN27C256AFP: Features: ` High speed Access time: 120/150 ns (max)` Low power dissipation Active mode: 25 mW (typ) (f = 1 MHz) Standby mode: 5 W (typ)` High reliability and fast programming Programming voltage: +...

HN27C256AFP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN27C256AFP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  High speed
     Access time: 120/150 ns (max)
`  Low power dissipation
     Active mode: 25 mW (typ) (f = 1 MHz)
     Standby mode: 5 W (typ)
`  High reliability and fast programming
     Programming voltage: +12.5 V DC
     Fast High-Reliability Programming Algorithm available
`  Device identifier mode
     Manufacturer code and device code

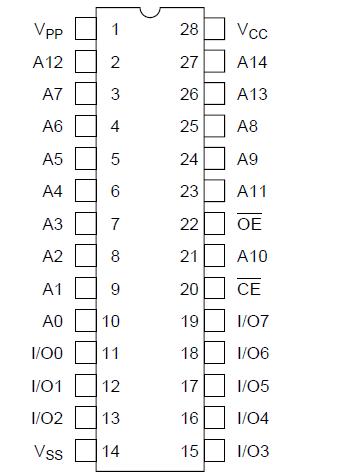

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
All input and output voltages*1
Vin, Vout
0.6*2 to +7.0
V
A9 input voltage*1
VID
0.6*2 to + 13.5
V
VPP voltage*1
VPP
0.6 to +13.5
V
VCC voltage*1
VCC
0.6 to + 7.0
V
Operating temperature range
Topr
0 to +70
°C
Storage temperature range
Tstg
55 to +125
°C
Storage temperature range under bias
Tbias
10 to +80
°C
Notes: 1. Relative to VSS
2. Vin, Vout and VID min = 1.0 V for pulse width 50 ns


Description

The HN27C256AFP is a 32768-word by 8-bit one time electrically programmable ROM. Initially, all bits of the HN27C256AP/AFP are in the "1" State (Output High). Data is introduced by selectively programming "0" into the desired bit locations. This device is packaged in a 28-pin plastic package (DIP, SOP). Therefore, this device cannot be re-written.
