Product Details

Description



Features:

·  High speed
- Access time: 85 ns (max)
·  Low power dissipation
- Active mode: 35 mW/MHz (typ)
·  Fast high reliability page programming and fast high-reliability programming
-Programming voltage: +12.5 V D.C.
-Programming time: 3.5 sec. (min) (Theoretical in page programming)
·  Inputs and outputs TTL compatible during both read and program modes.
·  Pin arrangement: 40-pin JEDEC standard, 44-pin JLCC JEDEC standard
·  Device indentifier mode: Manufacturer code and device code

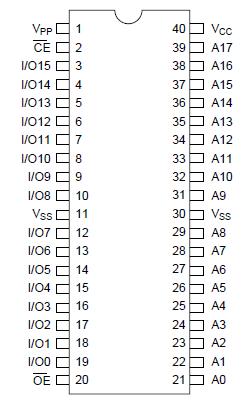

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
All input and output voltages*1 Vin, Vout 0.6*2 to +7.0 V
Voltage on pin A9 and OE VID 0.6*2 to +13.0 V
VPP voltage*1 VPP 0.6 to +13.5 V
VCC voltage*1 VCC 0.6 to +7.0 V
Operating temperature range Topr 0 to +70
Storage temperature range*3 Tstg 65 to +125
Storage temperature under bias Tbias 20 to +80
Notes: 1. Relative to VSS.
2. Vin, Vout, VID min = 2.0 V for pulse width 20 ns
3. Storage temperature range of device before programming.


Description

HN27C4096HG/HN27C4096HCC is a 4-Mbit ultraviolet erasable and electrically programmable ROM, featuring high speed and low power dissipation. Fabricated on advanced fine process and high speed circuitry technique, the HN27C4096HG/HCC makes high speed sub 100 ns access time possible. Therefore, it is suitable for fast 16- bit and 32-bit microcomputer systems using high speed microcomputer such as the 80286/80386 and 68020/68030. The HN27C4096HG/HCC offers high speed programming using page programming mode.

This device HN27C4096HCC has the package variation of cerdip 40-pin and JLCC 44-pin.
