HN29V2G74WT-30

Features: • On-board single power supply: VCC = 3.0 V to 3.6 V• Operation Temperature range: Ta = 0 to +70°C• Memory organization- Memory array: (2048+64) bytes * 16384 page * 4 Bank * 2 -Page size: (2048+64) bytes * 2 -Block size: (2048+64) bytes * 2 page...

product image

HN29V2G74WT-30 Picture
See larger image
SeekIC No. : 004364989 Detail

HN29V2G74WT-30: Features: • On-board single power supply: VCC = 3.0 V to 3.6 V• Operation Temperature range: Ta = 0 to +70°C• Memory organization- Memory array: (2048+64) bytes * 16384 pag...

HN29V2G74WT-30 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN29V2G74WT-30
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• On-board single power supply: VCC = 3.0 V to 3.6 V
• Operation Temperature range: Ta = 0 to +70°C
• Memory organization
- Memory array: (2048+64) bytes * 16384 page * 4 Bank * 2
 -Page size: (2048+64) bytes * 2
 -Block size: (2048+64) bytes * 2 page * 2
 -Page Register: (2048+64) bytes * 4 Bank * 2
• Multi level memory cell
- 2bit/cell
• Automatic program
 -Page program
- Multi bank program
 -Cache program
 -2 page cache program
• Automatic Erase
 -Block Erase
 -Multi Bank Block Erase
• Access time
 -Memory array to register (1st access time): 100 s max
 -Serial access: 35 ns min


Pinout

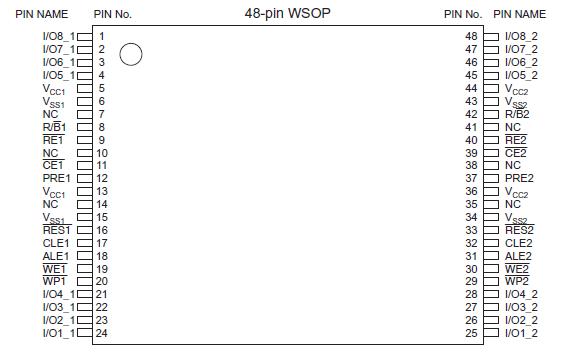

Connection Diagram


Description

The HN29V2G74 is a 2G-bit AG-AND flash memory. It mounts two 1G-bit AG-AND flash memories with multi-level memory cells, which are programmable and erasable automatically with a single 3.0 V power supply. HN29V2G74WT-30 achieves a write speed of 10 Mbytes/sec, which is 5 times faster than Renesas's previous multi level cell Flash memory, using 0.13m process technology and AG-AND (Assist Gate-AND) type Flash memory cell using multi level cell technology provides both the most cost effective solution and high speed programming.
