Part Number: HN624316
Description: The HN624316 is a 16-Mbit CMOS mask-programmable ROM organized either as 1048576 words by 16 bits or a...
- Table of contents:
HN624316
-
Suppliers
DataSheet
General Description
HN624316 General Description
The HN624316 is a 16-Mbit CMOS mask-programmable ROM organized either as 1048576 words by 16 bits or as 2097152 words by 8 bits. Realizing low power consumption, this memory is allowed for battery operation. And a high speed access of 120/150 ns is the most suitable to the system using a high speed microcomputer by 16 bits as 8086 and 68000 e.t.c..
HN624316 Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
Note |
| Supply voltage |
VCC |
0.3 to +7.0 |
V |
1 |
| All input and output voltage |
Vin, Vout |
0.3 to VCC + 0.3 |
V |
1 |
| Operating temperature |
Topr |
0 to +70 |
°C |
|
| Storage temperature |
Tstg |
55 to +125 |
°C |
|
| Temperature under bias |
Tbias |
20 to +85 |
°C |
HN624316 Features
• Single +5 V power supply
• Maximum access time: 120/150 ns (max)
• Low power consumption: 300 mW (typ) active
5 W (typ) standby
• Byte-wide or word-wide data organization with BHE
• Maximum access time: 120/150 ns (max)
• Low power consumption: 300 mW (typ) active
5 W (typ) standby
• Byte-wide or word-wide data organization with BHE

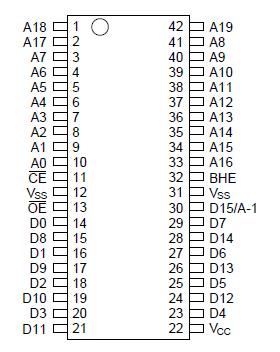

HN624316 Connection Diagram
