HPC467064

` HPC family-core features:
- 16-bit architecture, both byte and word operations
- 16-bit data bus, ALU, and registers
- 64 kbytes of direct memory addressing
- FASTÐ200 ns for fastest instruction when using 20.0 MHz clock, 134 ns at 30.0 MHz
- High code efficiencyÐmost instructions are single byte
- 16 x 16 multiply and 32 x 16 divide
- Eight vectored interrupt sources
- Four 16-bit timer/counters with 4 synchronous outputs and WATCHDOG logic
- MICROWIRE/PLUS serial I/O interface
- CMOSÐvery low power with two power save modes: IDLE and HALT
` 16 kbytes high speed UV erasable: electrically programmable CMOS EPROM
` Stand-alone emulation of HPC16083 and HPC16064 family
` EPROM and configuration bytes programmable by DATA I/O UNISITE with Pinsite Module
` Four selectable levels of security to protect on-chip EPROM contents
`UARTÐfull duplex, programmable baud rate
` Four additional 16-bit timer/counters with pulse width modulated outputs
` Four input capture registers
` 52 general purpose I/O lines (memory mapped)
` Commercial (0 to +70), and military (-55 to +125) temperature ranges for 20.0 MHz, commercial (0 to +70) for 30.0 MHz

The HPC167064 is a member of the HPC family of High Performance microControllers. Each member of the family has the same core CPU with a unique memory and I/O configuration to suit specific applications. The HPC167064 has a 16 kbyte, high-speed, UV-erasable, electrically programmable CMOS EPROM. This is ideally suited for applications where fast turnaround, pattern experimentation, and code confidentiality are important requirements. The HPC167064 can serve as a stand-alone emulator for either  the HPC16064 or the HPC16083. Two configuration registers have been added for emulation of the different chips.

The on-chip EPROM replaces the presently available user ROM space of HPC167064. The on-chip EPROM can be programmed via a DATA I/O UNISITE. There are security features added to the chip to implement READ, ENCRYPTED READ, and WRITE privileges for the on-chip EPROM. These defined privileges are intended to deter theft, alteration, or unintentional destruction of user code. Each part is fabricated in National's advanced microCMOS technology. This process combined with an advanced architecture provides fast, flexible I/O control, efficient data manipulation, and high speed computation.

The HPC167064 devices are complete microcomputers on a single chip. All system timing, internal logic, EPROM, RAM, and I/O are provided on the chip to produce a cost effective solution for high performance applications. On-chip functions such as UART, up to eight 16-bit timers with 4 input capture registers, vectored interrupts, WATCHDOGTM logic and MICROWIRE/PLUSTM provide a high level of system integration. The ability to address up to 64k bytes of external memory enables the HPC to be used in powerful applications typically performed by microprocessors and expensive peripheral chips.

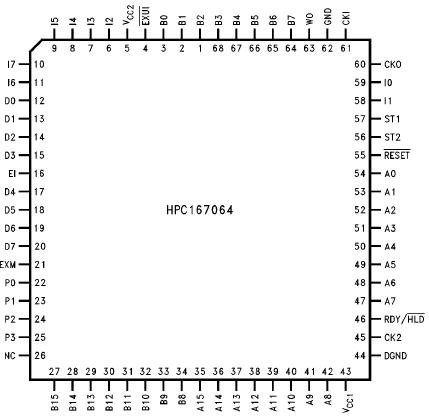

The microCMOS process results in very low current drain and enables the user to select the optimum speed/power product for his system. The IDLE and HALT modes provide further current savings. The HPC167064 is available only in 68-pin LDCC package.
