Product Details

Description



Features:

· Low forward voltage drop and suitable for high effifiency rectifying.
· MPAK Package is suitable for high density surface mounting and high speed assembly.





Pinout

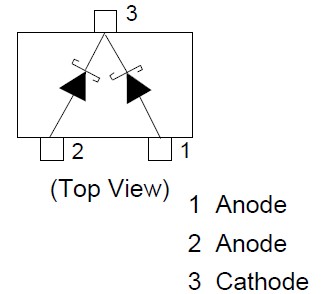

  Connection Diagram




Specifications

Item
Symbol
Value
Unit
Repetitive peak reverse voltage
VRRM*2
20
V
Average rectified current
IO*2
200
mA
Non-Repetitive peak
forward surge current
IFSM *3
3
A
Junction temperature
Tj
125
Storage temperature
Tstg
55 to +125
Notes 1. Two device total
Notes 2. See from Fig.4 to Fig.7
Notes 3. 10msec sine wave 1 pulse
