HS-80C86RH

Features:

• Radiation Hardened
- Latch Up Free EPl-CMOS
- Total Dose >100K RAD (Si)
- Transient Upset >10⁸ RAD (Si)/s
• Low Power Operation
- ICCSB = 500mA (Max)
- ICCOP = 12mA/MHz (Max)
• Pin Compatible with NMOS 8086 and Intersil 80C86
• Completely Static Design DC to 5MHz
• 1MB Direct Memory Addressing Capability
• 24 Operand Addressing Modes
• Bit, Byte, Word, and Block Move Operations
• 8-Bit and 16-Bit Signed/Unsigned Arithmetic
- Binary or Decimal
- Multiply and Divide
• Bus-hold Circuitry Eliminates Pull-up Resistors for CMOS Designs
• Hardened Field, Self-Aligned, Junction-Isolated CMOS Process
• Single 5V Power Supply
• Military Temperature Range -35 to +125
• Minimum LET for Single Event Upset -6MEV/mg/cm² (Typ)

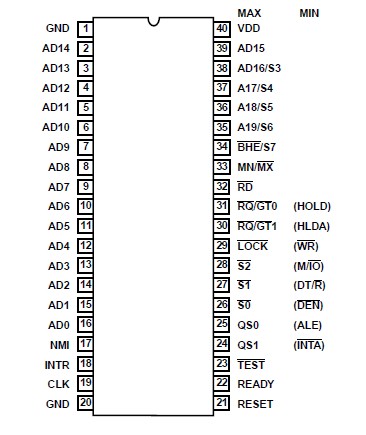

Pinout






Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7.0V
Input or Output Voltage
Applied for all Grades . . . . . . . . . . . . . . . . . .VSS-0.3V to VDD+0.3V
Storage Temperature Range . . . . . . . . . . . . . . . . . -65 to +150
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+175
Lead Temperature (Soldering 10s) . . . . . . . . . . . . . . . . . . . .+300
Typical Derating Factor . . . . . . . . . . . 12mA/MHz Increase in IDDOP
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1




Description

The Intersil HS-80C86RH high performance radiation hardened 16-bit CMOS CPU is manufactured using a hardened field, self aligned silicon gate CMOS process. Two modes of operation, MINimum for small systems and MAXimum for larger applications such as multiprocessing, allow user configuration to achieve the highest performance level. Industry standard operation allows use of existing NMOS 8086 hardware and software designs. Specifications for Rad Hard QML devices are controlled by the Defense Supply Center in Columbus (DSCC). The SMD numbers listed here must be used when ordering. Detailed Electrical Specifications for HS-80C86RH are contained in SMD 5962-95722. A hot-link is provided on our homepage for downloading. www.intersil.com/spacedefense/space.asp
