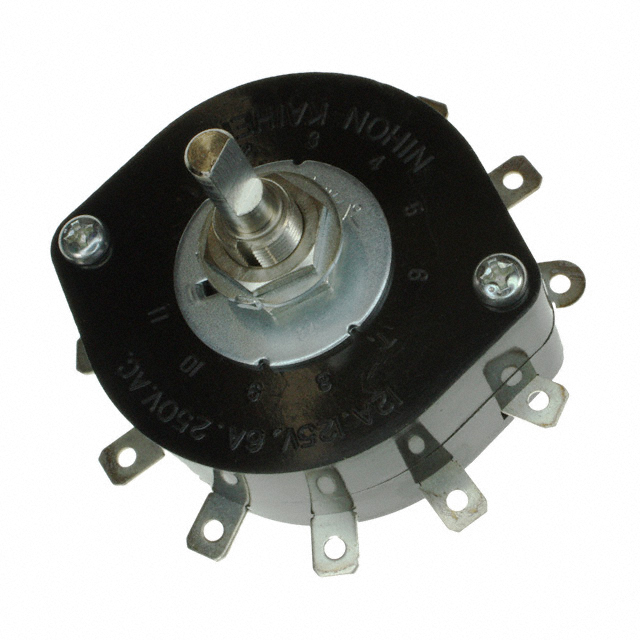

See larger image

SeekIC No. : 004170313 Detail

HS16-1SN: SW ROTARY SP 12A SHORTING 1DECK

HS16-1SN Data Sheet

US $ 7.88~11.21 / Piece | Get Latest Price

Part Number:: HS16-1SN
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$11.21
$10.12
$9.7
$9.09
$8.79
$8.3
$8.06
$7.88

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HS16 evaluate
Heat Sinks Heatsink, 10-Pin Power Pkg
HS16-1N evaluate
US $7.88 - 11.21 / Piece

SWITCH ROTARY 1DECK 12A NONSHORT
HS16-1-RO evaluate
US $9.32 - 12.4 / Piece

Rotary Switches SP 11 POS KNURLED SHAFT 12A

Product Details

Quick Details

Series:	HS	Manufacturer:	NKK Switches
Number of Positions:	2 ~ 11	Package / Case :	WQFN-42
Number of Decks:	1	Number of Poles per Deck:	1
Circuit per Deck:	SP11T	Contact Rating @ Voltage:	12A @ 125VAC
Actuator Type:	Flatted (6mm dia)	Mounting Type:	Panel Mount
Termination Style:	Solder Lug	Orientation:	Vertical

Description

Number of Decks: 1
Number of Poles per Deck: 1
Orientation: Vertical
Mounting Type: Panel Mount
Termination Style: Solder Lug
Angle of Throw: 30°
Circuit per Deck: SP11T
Manufacturer: NKK Switches
Series: HS
Actuator Type: Flatted (6mm dia)
Number of Positions: 2 ~ 11
Contact Rating @ Voltage: 12A @ 125VAC

Parameters:

Technical/Catalog Information	HS16-1SN
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Flatted (6mm dia)
Mounting Type	Panel Mount
Number of Positions	2 ~ 11
Number of Decks	1
Number of Poles per Deck	1
Angle of Throw	30°
Contact Rating @ Voltage	12A @ 125VAC
Orientation	Vertical
Termination Style	Solder Lug
Circuit per Deck	SP11T
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HS16 1SN HS161SN
