HSB0104YP
-
Suppliers
DataSheet
General Description
HSB0104YP Maximum Ratings
| Item | Symbol |
Value |
Unit |
| Repetitive peak reverse voltage | VRRM |
40 |
V |
| Average rectified current | IO |
100 |
mA |
| Non-Repetitive peak forward surge current |
IFSM*2
|
3 |
mW |
| Junction temperature | Tj |
125 |
|
| Storage temperature | Tstg |
-55 to +125 |
Note: 2. 10msec sine wave 1 pulse
HSB0104YP Features
· Can be used for protection of signal-bus lines.
· The mounting efficiency has been improved by incorporating two low-loss diode element into a CMPAK-4 package.
· The mounting efficiency has been improved by incorporating two low-loss diode element into a CMPAK-4 package.

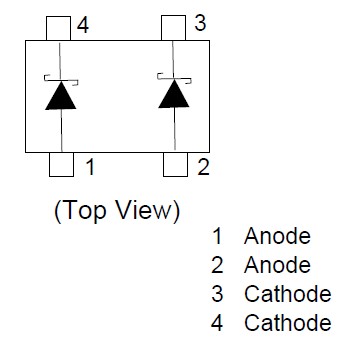

HSB0104YP Connection Diagram
HSB0104YP
PDF/DataSheet Download
- Datasheet: HSB0104YP
- File Size: 28435 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
