Features:

` Low capacitance. (C=2.0pF max)
` Short reverse recovery time. (trr =3.0ns max)
` U ltra small F lat P ackage (UFP) is suitable for surface mount design.




Pinout

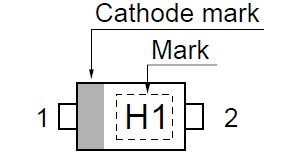

Connection Diagram




Specifications

Item
Symbol
Value
Unit
Peak reverse voltage
VRRM
85
V
Reverse voltage
VR
80
V
Average forward current
IO
100
mA
Peak forward current
IFM
300
mA
Non-Repetitive peak
forward surge current
IFSM*1
40
mA
Junction temperature
Tj
125
Storage temperature
Tstg
-55 to +125
Note 1. Within 1ms forward surge current.




Description

The HSC119 is designed as one kind of silicon epitaxial planar diode that has three points of features:(1)Low capacitance. (C=2.0pF max); (2)Short reverse recovery time. (trr =3.0ns max); (3)Ultra small F lat P ackage (UFP) is suitable for surface mount design.

The absolute maximum ratings of the HSC119 can be summarized as:(1)Peak reverse voltage: 85 V;(2)Reverse voltage: 80 V;(3)Average forward current: 100 mA;(4)Peak rectified current: 300 mA;(5)Non-Repetitive peak forward surge current: 4 A;(6)Junction temperature: 125 °C;(7)Storage temperature:55 to +125 °C. If you want to know more information such as the electrical characteristics about it, please download the datasheet in www.seekic.com or www.chinaicmart.com.
