Product Details

Description



Features:

· C-MOS Metal-Gate Process.
· Operating voltage: 1.2V ~ 4.5V.
· Low stand-by current: 1mA at 3V.
· Five lamp flash driver with 10mA driving capability.
· Random or sequence flash selection
· toggle on/off control function.
· 1/10 duty cycle output.
· Built-in oscillator.
· Minimum external components

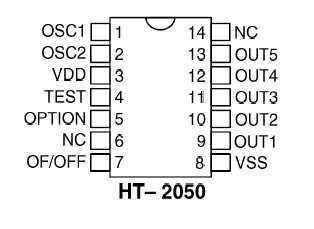

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Minimum
Maximum
Unit
Supply Voltage
VDD
-0.3
5
V
Input/Output Voltage
VI, VO
VSS0.3
VDD+0.3
V
Storage Temperature
TSTG
-50
125
Operating Temperature
TOP
0
70



Description

The HT-2050  is a low cost, low-power C-MOS LSI designed for lamp and LED flash driver. It has five flash outputs with 10mA drive capability that can implement random or sequence flashing function controlled by one option pin. It only requires one external resistor for typical application. It is very suitable for the use of the flash products such as disco glasses, disco hat, gift card, X'mas decoration and so forth.
