Product Details

Description



Features:

· Operating voltage: 2.7V~5.2V
· LCD driving voltage: 3.0V~5.0V
· 40 internal LCD drivers available
· Bias voltage: static to 1/5 bias
· LCD driver with serial/parallel conversion function
· Common or segment driver output by selection


Application

· Electronic dictionaries
· Portable computers
· Remote controllers
· Calculators

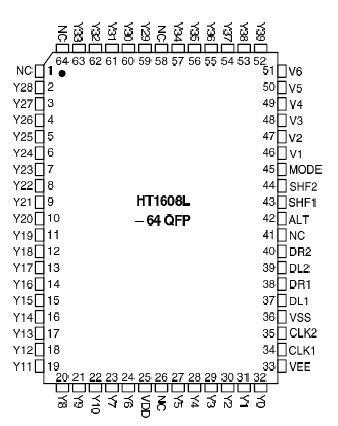

Pinout

Connection Diagram


Specifications

Supply Voltage ..............................0.3V to 5.5V
Storage Temperature..............50°C to 125°C
Input Voltage................. VSS0.3V to VDD+0.3V
Operating Temperature..............20°C to 70°C

*Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliabiility.


Description

The HT1608L is an LCD driver LSI with 40 output channels using CMOS technology. It is equipped with two sets of 20-bit bidirectional shift registers, 20-bit data latches, 20-bit LCD drivers, and logic control circuits.

The HT1608 can convert serial data received from an LCD controller into parallel data and send out LCD driving waveforms to the LCD panel. The HT1608L is designed for general purpose LCD drivers. It can drive both static and dynamic drive LCDs. The chip can be applied to a common driver or a segment driver.
