Features:

· Logic voltage: 5V
·High-voltage output: VDD-35V max.
·Multiple display (12-segment & 16-digit to 20-segment & 8-digit)
·12X4 matrix key scanning
·8 steps dimmer circuit
·5 LED output ports (20mA max.)
·4-bit general purpose input port
·No external resistors necessary for driver output (provides PMOS open-drain and pull-low resistor output)
·Serial interface with MCU (CLK, CS, DI, DO)
·52-pin QFP package




Application

· Consumer products panel function control
·Industrial measuring instrument panel function control
·Other similar application panel function control




Pinout

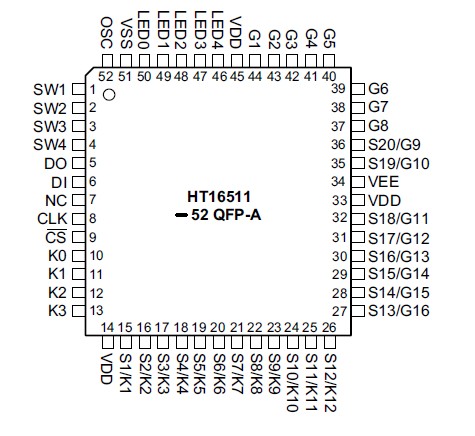

Connection Diagram




Specifications

Supply Voltage .........................VSS-0.3V to VSS+6.0V
Operating Temperature...........................-25 to 75
Input Voltage............................VSS-0.3V to VDD+0.3V
Storage Temperature ..........................-50 to 125

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

HT16511 is a VFD (Vacuum Fluorescent Display) controller/driver that is driven on a 1/8 to 1/16 duty factor. It consists of 12 segment output lines, 8 grid output lines, 8 segment/grid output drive lines, 5 LED output ports, a control circuit, a display memory, and a key scan circuit.

Serial data inputs to the HT16511 through a three-line serial interface. This VFD controller/driver is ideal as a peripheral device for an MCU.
