HT23B60

Features: ` Operating voltage range: 2.4V~5.5V`Program ROM: 32KX16 bits`Data RAM: 2.3KX8 bits`16-bit table read instructions`Eight-level subroutine nesting`Timer-Two 16-bit programmable timer counters-Real time clock (RTC)-Watchdog Timer (WDT)`Four operating modes: Idle mode, Sleep mode, Green mod...

product image

HT23B60 Picture
See larger image
SeekIC No. : 004366627 Detail

HT23B60: Features: ` Operating voltage range: 2.4V~5.5V`Program ROM: 32KX16 bits`Data RAM: 2.3KX8 bits`16-bit table read instructions`Eight-level subroutine nesting`Timer-Two 16-bit programmable timer counte...

HT23B60 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT23B60
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage range: 2.4V~5.5V
` Program ROM: 32KX16 bits
` Data RAM: 2.3KX8 bits
` 16-bit table read instructions
` Eight-level subroutine nesting
` Timer
- Two 16-bit programmable timer counters
- Real time clock (RTC)
- Watchdog Timer (WDT)
` Four operating modes: Idle mode, Sleep mode, Green mode and Normal mode
` Built-in 32768Hz x'tal oscillator circuit
` Build-in circuit dual system clock 32768Hz, 3.58MHz
` Build-in Low Battery detector
` 14 bidirectional I/O lines, 16 bidirectional I/O lines are share pin with segments
` LCD driver:
- Up to a max. of 60 segments and 11 common
- 660 dots, 1/4 or 1/5 bias capability, 1/10 or 1/11 duty, R type
- LCD com/seg driving strength can be adjusted to compromise the display quality and current consumption, adjustable 16-level VLCD
- Segment 0~15 supports Key Scan function
` Build-in a serial-parallel-interface hardware circuit
` Build-in a 8-bit PWM D/A hardware circuit
` 100-pin QFP package


Pinout

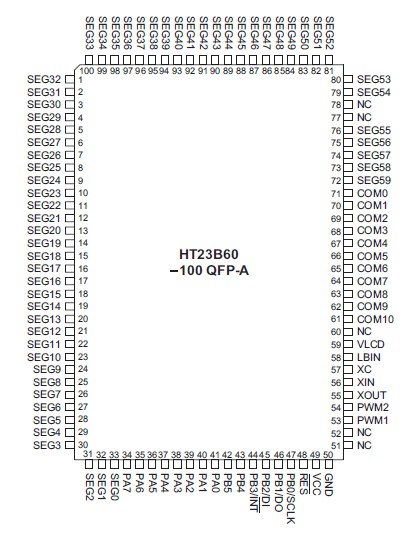

Connection Diagram


Specifications

Supply Voltage ..........................VSS-0.3V to VSS+6.0V
Storage Temperature ........................... -55 to 150
Input Voltage ...........................VSS-0.5V to VDD+0.5V
Operating Temperature ......................... .-10 to 70
Current Drain Per Pin Excluding VDD and VSS........10mA

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

HT23B60 is an 8-bit CMOS microcontroller with various functionalities in a compact package such as SRAM, ROM I/Os, interrupt controller, timer and LCD controller/ driver. It's suitable for use as electrical data bank, LCD game, calendar and speech products.
