HT46C232

Features: Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V40 bidirectional I/O lines (max.)1 interrupt input shared with an I/O lineTwo 16-bit programmable timer/event counter with overflow interruptOn-chip crystal and RC oscillatorWatchdog Timer4096*16 program memory192*8 data memory ...

product image

HT46C232 Picture
See larger image
SeekIC No. : 004366694 Detail

HT46C232: Features: Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V40 bidirectional I/O lines (max.)1 interrupt input shared with an I/O lineTwo 16-bit programmable timer/event counter with overf...

HT46C232 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT46C232
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Operating voltage:
        fSYS=4MHz: 2.2V~5.5V
        fSYS=8MHz: 3.3V~5.5V
40 bidirectional I/O lines (max.)
1 interrupt input shared with an I/O line
Two 16-bit programmable timer/event counter with overflow interrupt
On-chip crystal and RC oscillator
Watchdog Timer
4096*16 program memory
192*8 data memory RAM
Supports PFD for sound generation
HALT function and wake-up feature reduce power consumption
Up to 0.5s instruction cycle with 8MHz system clock at VDD=5V
8-level subroutine nesting
8 channels 10-bit resolution A/D converter
4-channel 8-bit PWM output shared with four I/O lines
Bit manipulation instruction
16-bit table read instruction
63 powerful instructions
All instructions in one or two machine cycles
Low voltage reset function
I2C Bus (slave mode)
28-pin SKDIP/SOP, 48-pin SSOP packages


Pinout

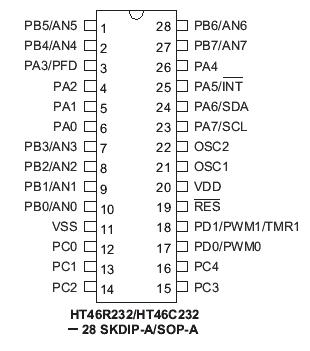

Connection Diagram


Specifications

Supply Voltage ...........................VSS-0.3V to VSS+6.0V
Input Voltage..............................VSS-0.3V to VDD+0.3V
Storage Temperature ............................-50 to 125
Operating Temperature...........................-40 to 85


Description

The HT46R232/HT46C232 are 8-bit, high performance, RISC architecture microcontroller devices specifically designed for A/D applications that interface directly to analog signals, such as those from sensors. The mask version  is fully pin and functionally compatible with the OTP version HT46R232 device.

The HT46C232 advantages of low power consumption, I/O flexibility, programmable frequency divider, timer functions, oscillator options, multi-channel A/D Converter, Pulse Width Modulation function, I2C interface, HALT and wake-up functions, enhance the versatility of these devices to suit a wide range of A/D application possibilities such as sensor signal processing, motor driving, industrial control, consumer products, subsystem controllers, etc.
